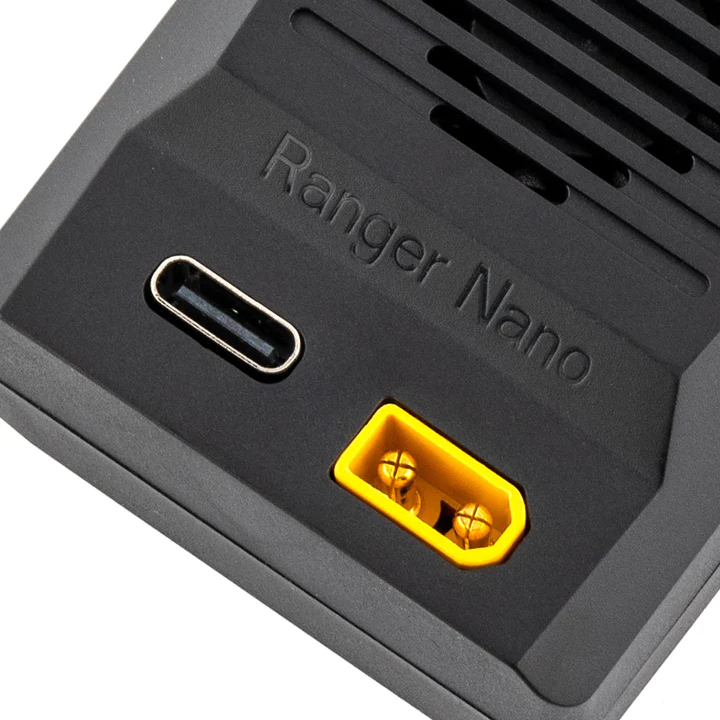

Item: Ranger Nano Module
-
Regulatory Domain: ISM2400
-
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
-
RF chip: SX1281IMLTRT
-
Frequency Range: 2400 MHz - 2480 MHz
-
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
-
Minimum receiver refresh rate: 25Hz
-
RF Output Power: Default 100mW
-
Wifi Support: Yes
-
Bluetooth support: Yes
-
XT30 Power supply voltage: DC 6V - 16.8V
-
Weight: 48g (with antenna) / 39g (without antenna)
-
Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)
Menu
Promocje
NewBeeDrone AcroBee75 HD | DJI O3 | BNF | ELRS
999,00 zł
Cena regularna:
1 849,00 zł
Najniższa cena:
1 849,00 zł
FlyLens 85 | DJI O3 | ELRS 2.4G | V1.3 BNF
999,00 zł
Cena regularna:
1 899,00 zł
Najniższa cena:
1 100,00 zł
Zestaw ELRS Radiomaster Ranger Nano Combo
Dostępność:
tymczasowo niedostępny
Cena:
299,00 zł
Cena regularna:
Najniższa cena z 30 dni przed obniżką:
towar niedostępny
dodaj do przechowalni
Producent:
Radiomaster
Opis

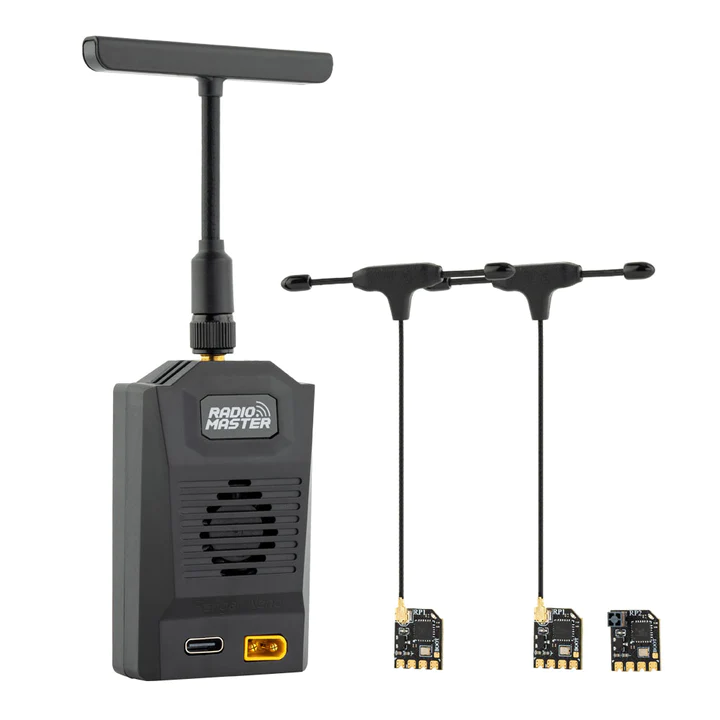

Zestaw ELRS Radiomaster Ranger Nano Combo
Zawartość zestawu:
- 1 x moduł (nadajnik) ELRS Ranger Nano
- 2 x odbiornik RP1 ELRS 2.4GHz Nano (antena 65mm typu T)
- 1 x odbiornik RP2 ELRS 2.4GHz Nano (lutowana antena ceramiczna)
Specyfikacja modułu ELRS Ranger Nano [ENG]:
Specyfikacja odbiornika ELRS RP1 [ENG]:
- Item: RP1 Nano ExpressLRS 2.4ghz Receiver
- Type: ISM
- MCU: EPS8285
- RF Chip: SEMTECH SX1281
- Telemetry RF power: 10mW
- Antenna: 65mm 2.4ghz T Antenna
- Frequency Range: 2.404 - 2.479 Ghz
- Maximum receive refresh rate: 500Hz / F1000Hz
- Minimum receiver refresh rate: 25Hz
- Working voltage: 5v
- Weight: 2.2g (Including antenna)
- Dimension: 13mm*11mm*3mm
- Firmware Version: ExpressLRS v2.4 pre-installed
- FW Target: RadioMaster RP1/2 2400 RX
- Bus interface: CRSF
Specyfikacja odbiornika ELRS RP2 [ENG]:
- Item: RP2 Nano ExpressLRS 2.4ghz Receiver
- Type: ISM
- MCU: EPS8285
- RF Chip: SEMTECH SX1281
- Telemetry RF power: 10mW
- Antenna: On Board SMT Antenna
- Antenna: 65mm 2.4ghz T Antenna
- Frequency Range: 2.404 - 2.479 Ghz
- Maximum receive refresh rate: 500Hz/F1000Hz
- Minimum receiver refresh rate: 25Hz
- Working voltage: 5v
- Weight: 0.55g (On Board antenna)
- Dimension: 13mm*11mm*7mm
- Firmware Version: ExpressLRS v2.4 pre-installed
- FW Target: RadioMaster RP1/2 2400 RX
- Bus interface: CRSF
