Zestaw ELRS Radiomaster Ranger Micro Combo

Zestaw ELRS Radiomaster Ranger Micro Combo

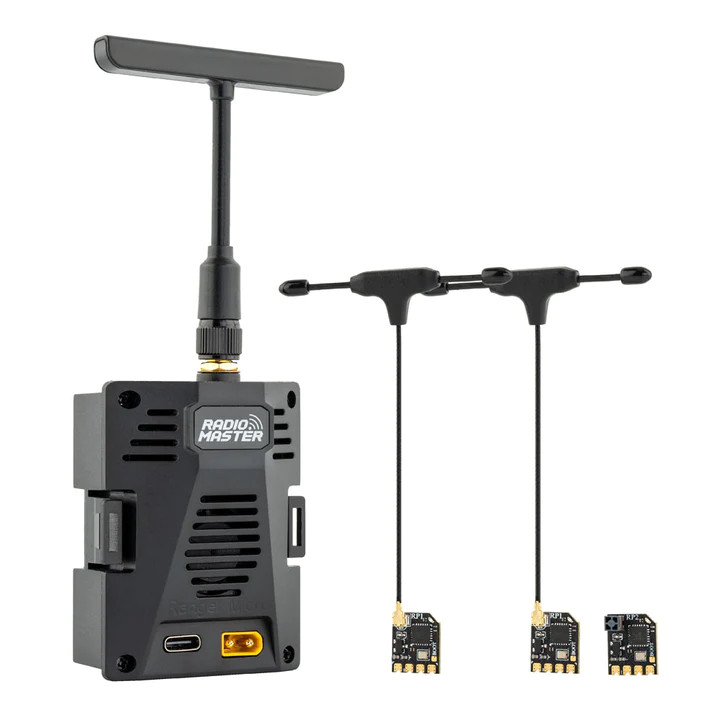

Zawartość zestawu:

• 1 x moduł (nadajnik) ELRS Ranger Micro
• 2 x odbiornik RP1 ELRS 2.4GHz Nano (antena 65mm typu T)
• 1 x odbiornik RP2 ELRS 2.4GHz Nano (lutowana antena ceramiczna)

Specyfikacja modułu ELRS Ranger Micro [ENG]:

• Item: Ranger Micro Module
• Regulatory Domain: ISM2400
• MCU: ESP32(main), ESP8285(aux,as ESP backpack)
• RF chip: SX1281IMLTRT
• Frequency Range: 2400 MHz - 2480 MHz
• Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
• Minimum receiver refresh rate: 25Hz
• RF Output Power: Default 100mW
• Wifi Support: Yes
• Bluetooth support: Yes

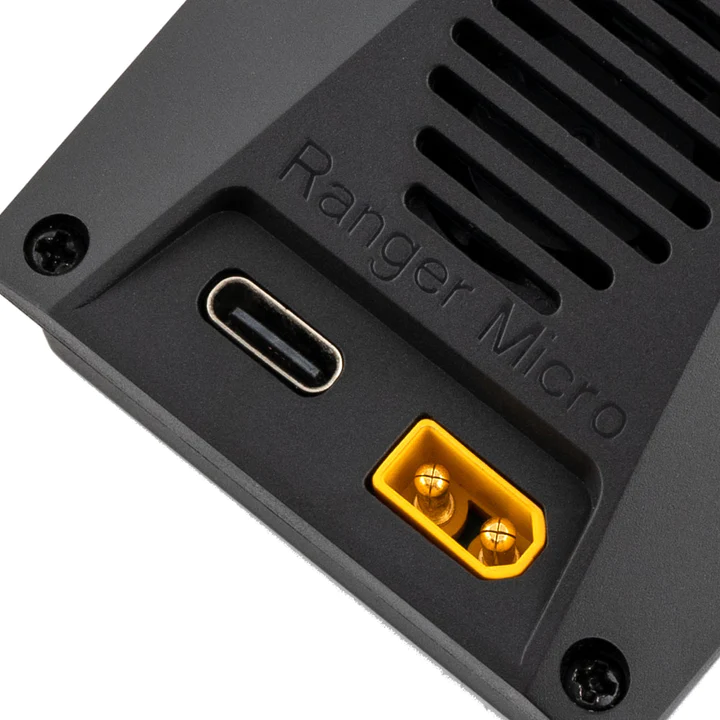

• XT30 Power supply voltage: DC 6V - 16.8V
• Weight:  50g (with antenna) / 40.5g (without antenna)
• Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)

Specyfikacja odbiornika ELRS RP1 [ENG]:

• Item: RP1 Nano ExpressLRS 2.4ghz Receiver
• Type: ISM
• MCU: EPS8285
• RF Chip: SEMTECH SX1281
• Telemetry RF power: 10mW
• Antenna: 65mm 2.4ghz T Antenna
• Frequency Range: 2.404 - 2.479 Ghz
• Maximum receive refresh rate: 500Hz / F1000Hz
• Minimum receiver refresh rate: 25Hz
• Working voltage: 5v
• Weight: 2.2g (Including antenna)
• Dimension: 13mm*11mm*3mm
• Firmware Version: ExpressLRS v2.4 pre-installed
• FW Target: RadioMaster RP1/2 2400 RX
• Bus interface: CRSF

Specyfikacja odbiornika ELRS RP2 [ENG]:

• Item: RP2 Nano ExpressLRS 2.4ghz Receiver
• Type: ISM
• MCU: EPS8285
• RF Chip: SEMTECH SX1281
• Telemetry RF power: 10mW
• Antenna: On Board SMT Antenna
• Antenna: 65mm 2.4ghz T Antenna
• Frequency Range: 2.404 - 2.479 Ghz
• Maximum receive refresh rate: 500Hz/F1000Hz
• Minimum receiver refresh rate: 25Hz
• Working voltage: 5v
• Weight: 0.55g (On Board antenna)
• Dimension: 13mm*11mm*7mm
• Firmware Version: ExpressLRS v2.4 pre-installed
• FW Target: RadioMaster RP1/2 2400 RX
• Bus interface: CRSF
