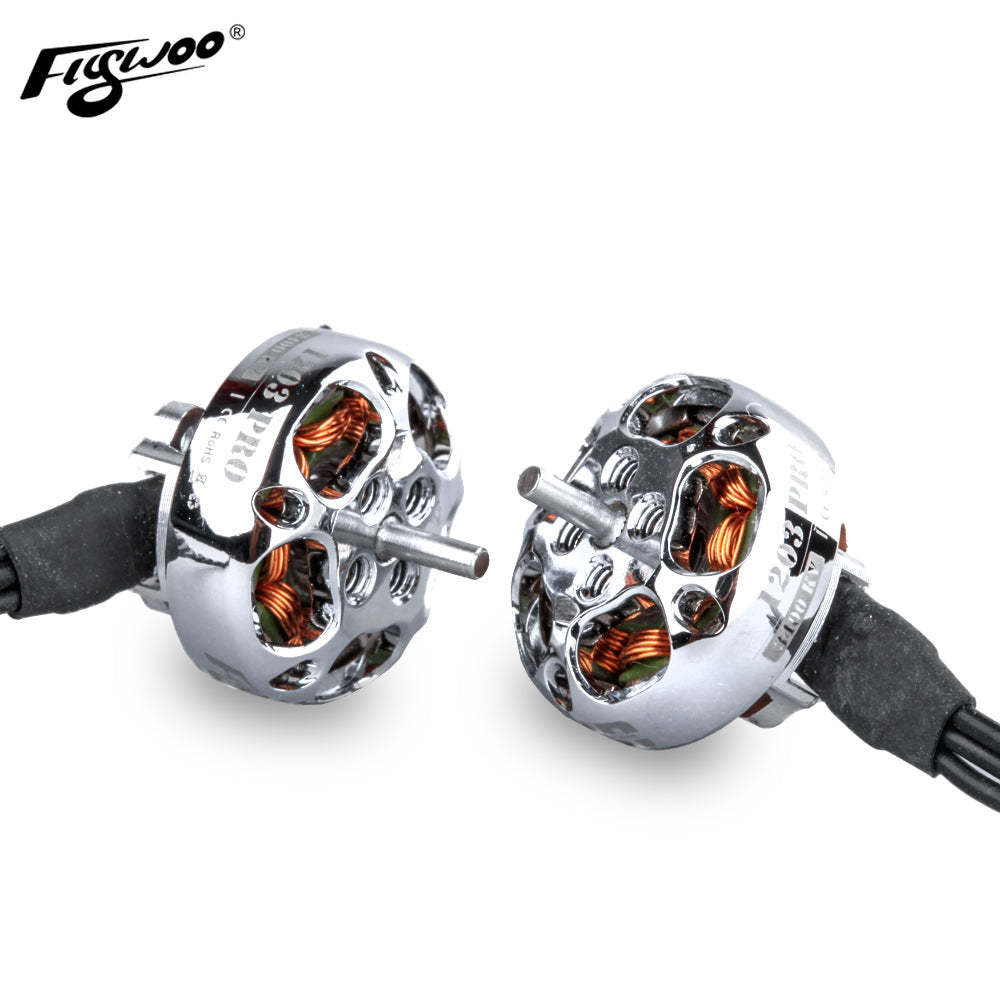

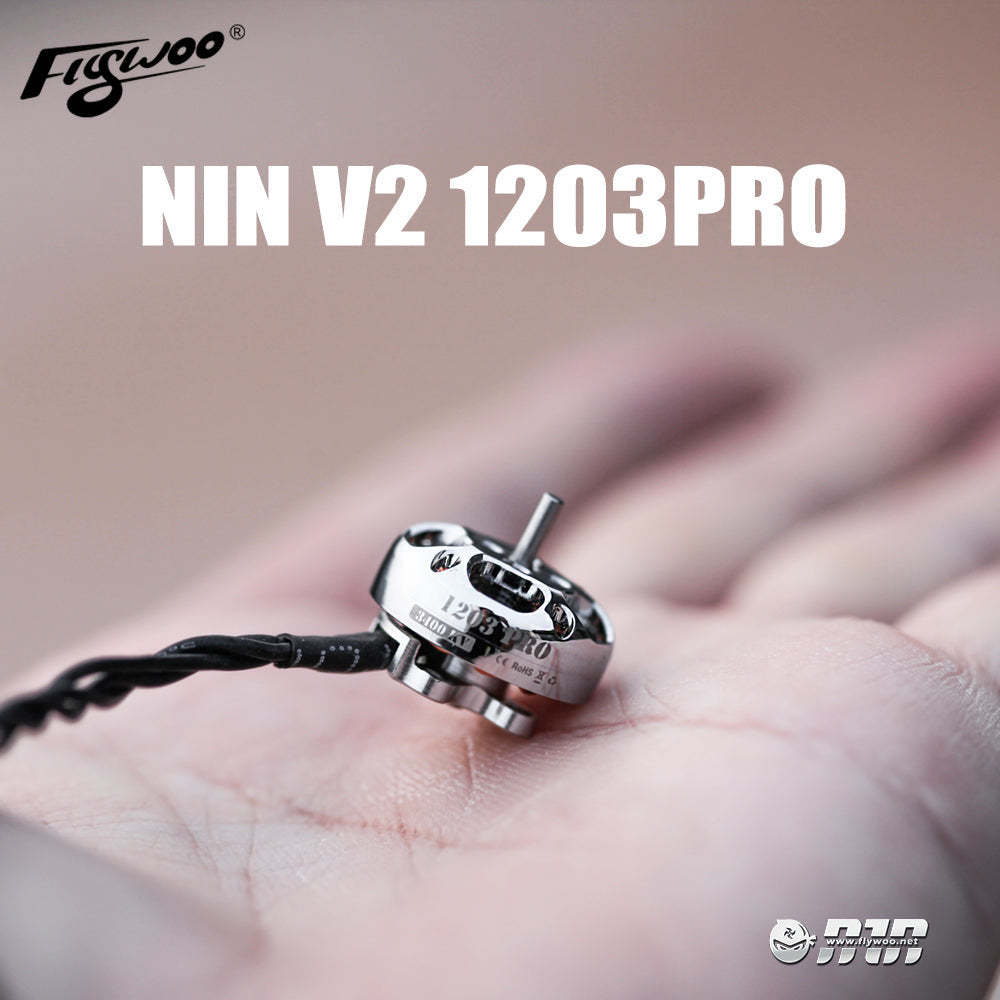

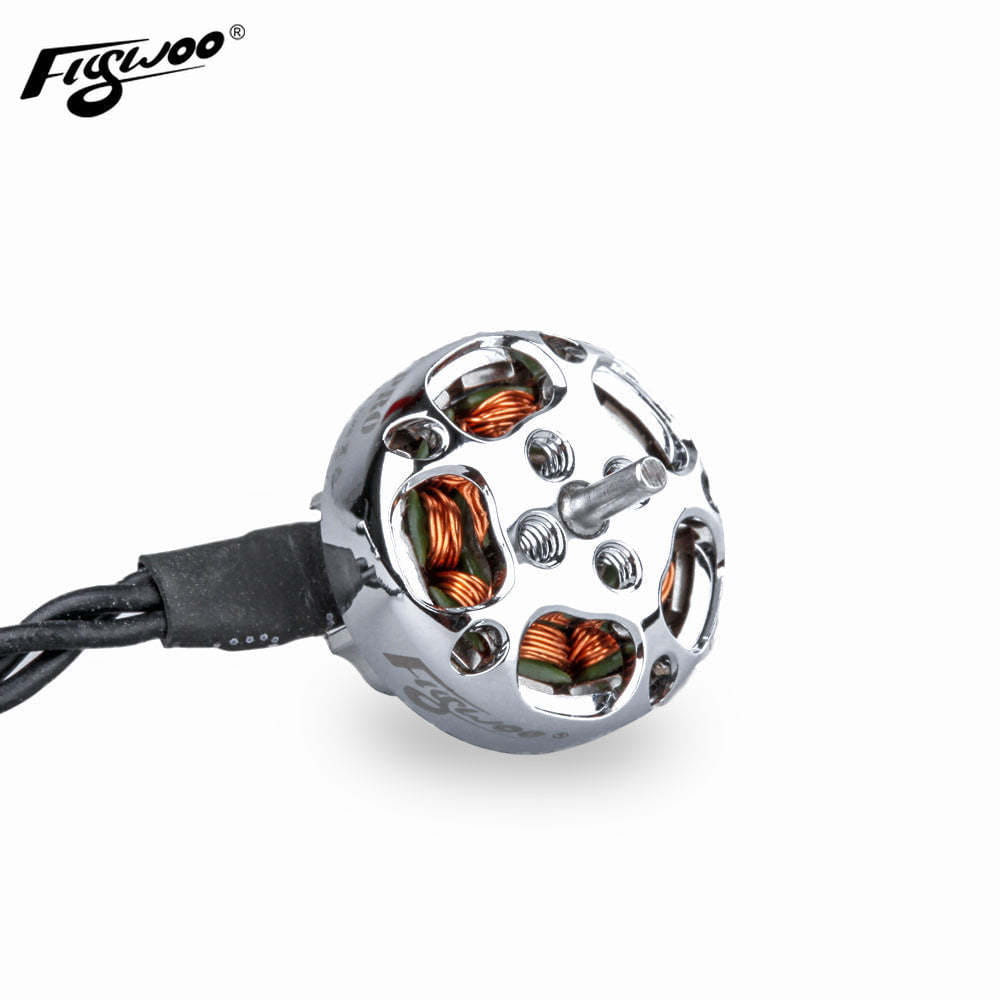

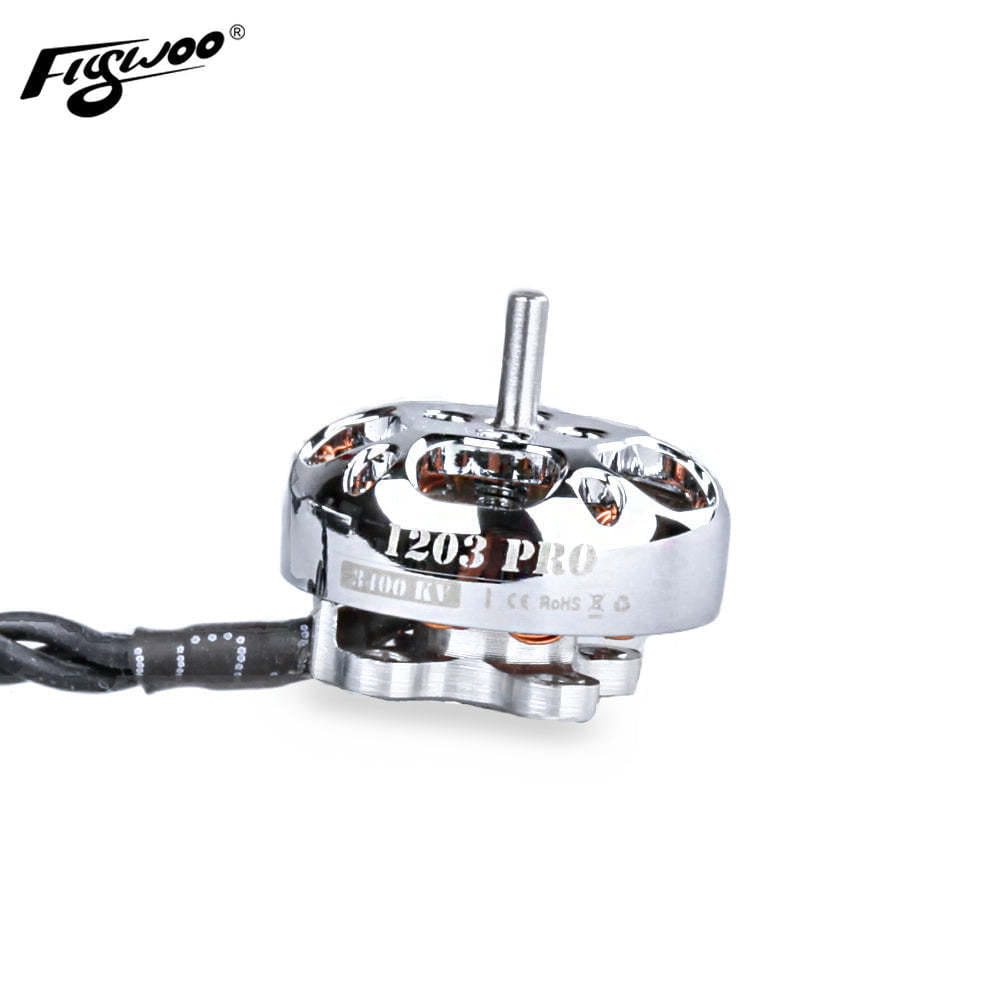

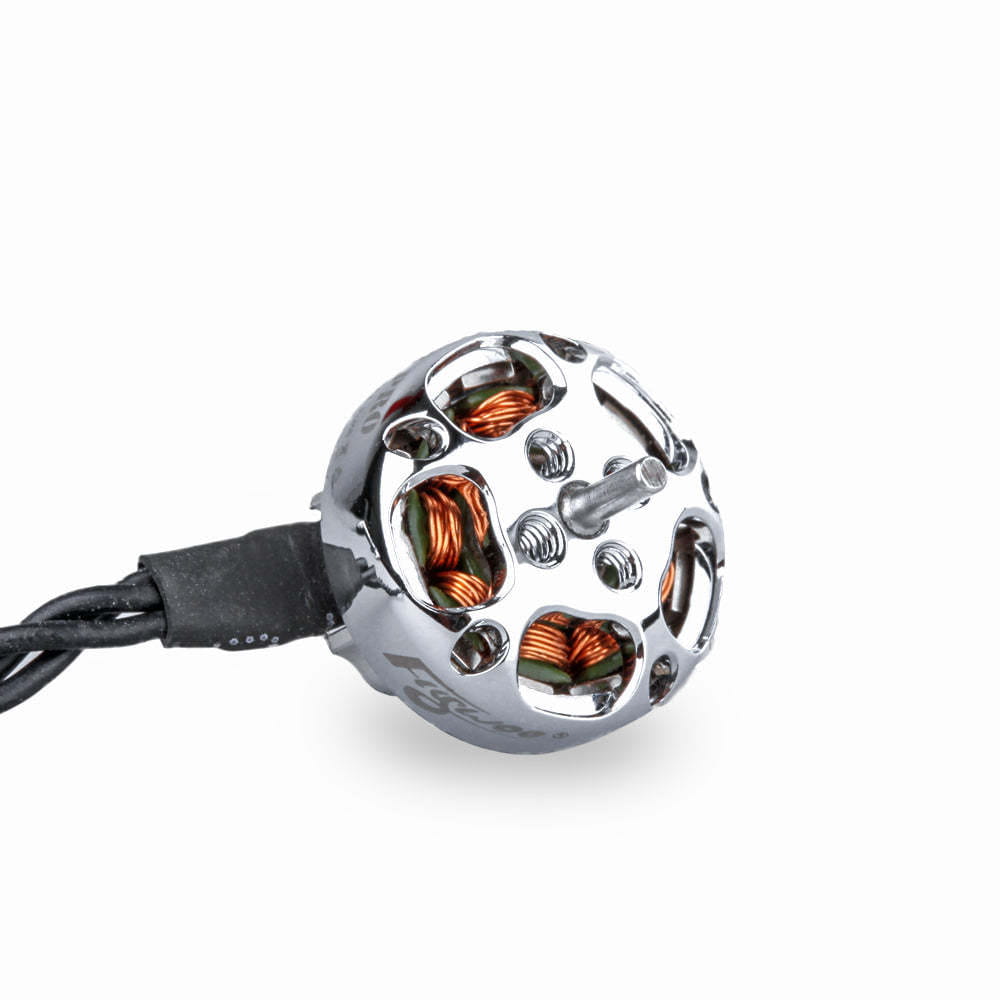

NIN V2 1203PRO was the ultra reliable high performance micro drone motor . Using the high grade unibell design , and the best electroplating process that looks clean and aggressive at the same time. The sturdy structure and high-quality materials make it performs like a beast, you"ll have your mind blown!
Best suited for cinewhoop, micro rippers or any 2''3'' freestyle and racing builds
Features
- Power efficiency becomes higher, experience more flight time
- The high grade unibell design , and the best electroplating process
- Standard mounting pattern at the bottom, adapt to all frames on the market
- Adopt a curved magnet structure to achieve more smooth and silent
Recommended Parts
- Battery:
Explorer 450 mAh HV 4s 75C Lipo Battery
Explorer 300 mAh HV 4s 75C Lipo Battery - Frame:
Firefly Baby Quad 1.6'' Frame kit
Firefly Hex Nano 1.6'' Frame kit
Specifications
KV: 5500KV
- Configu-ration :9N12P
- Stator Diamter : 12mm
- Stator Length : 3mm
- Shaft Diameter : 1.5mm

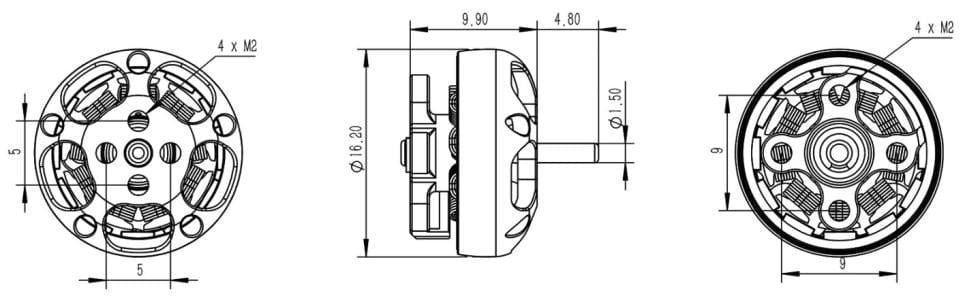

- Motor Dimension(Dia.*Len) : Φ16.2*9.9mm

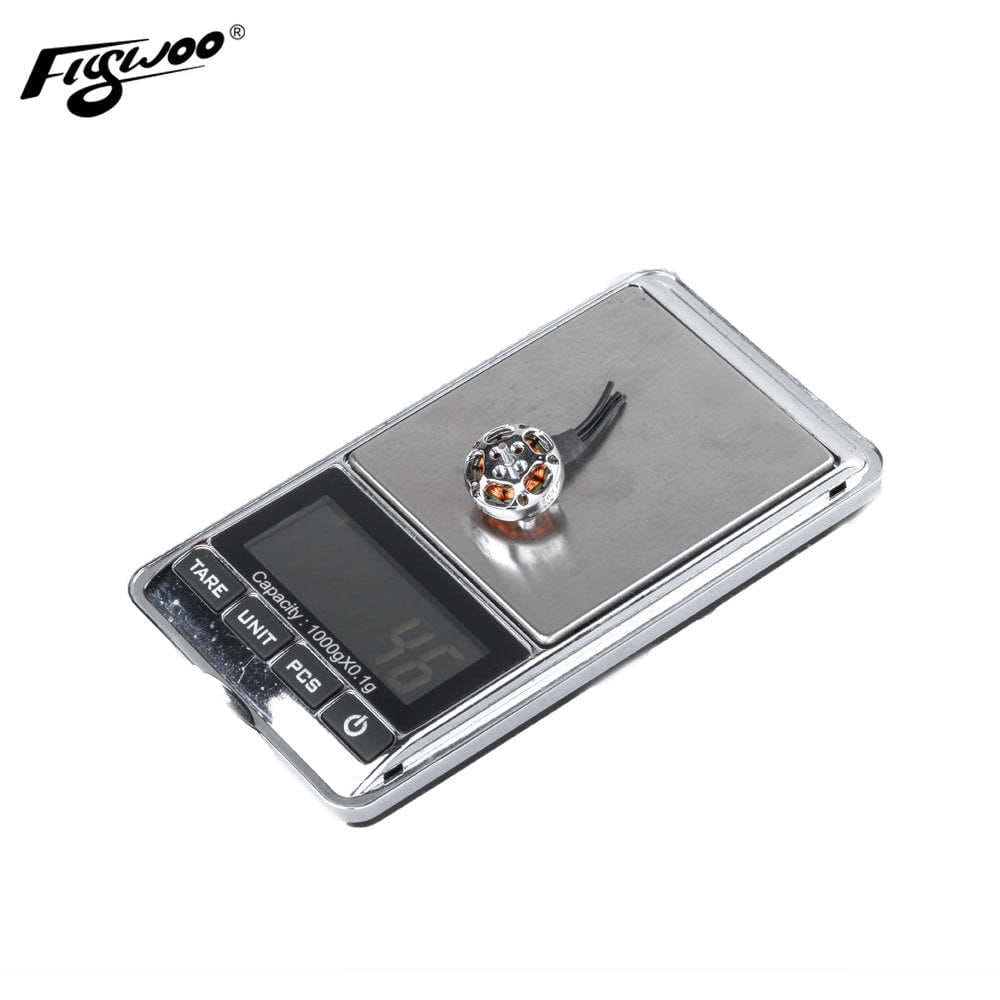

- Weight(g) : 4.7(3cm wire)
- Idle current(10) : @10V(A) : 0.7
- No.of Cells(Lipo) : 3~4S
- Max Continuous Power(W) 3S : 96.2
- Internal Resistance : 350mΩ
- Max Current(3S) : 6.5A
- Max.Effciency Current : (0.5-1.6A)>84%
