Moduł kamery Cetus X | Kamera C04 + M04 (Betaflight FC)

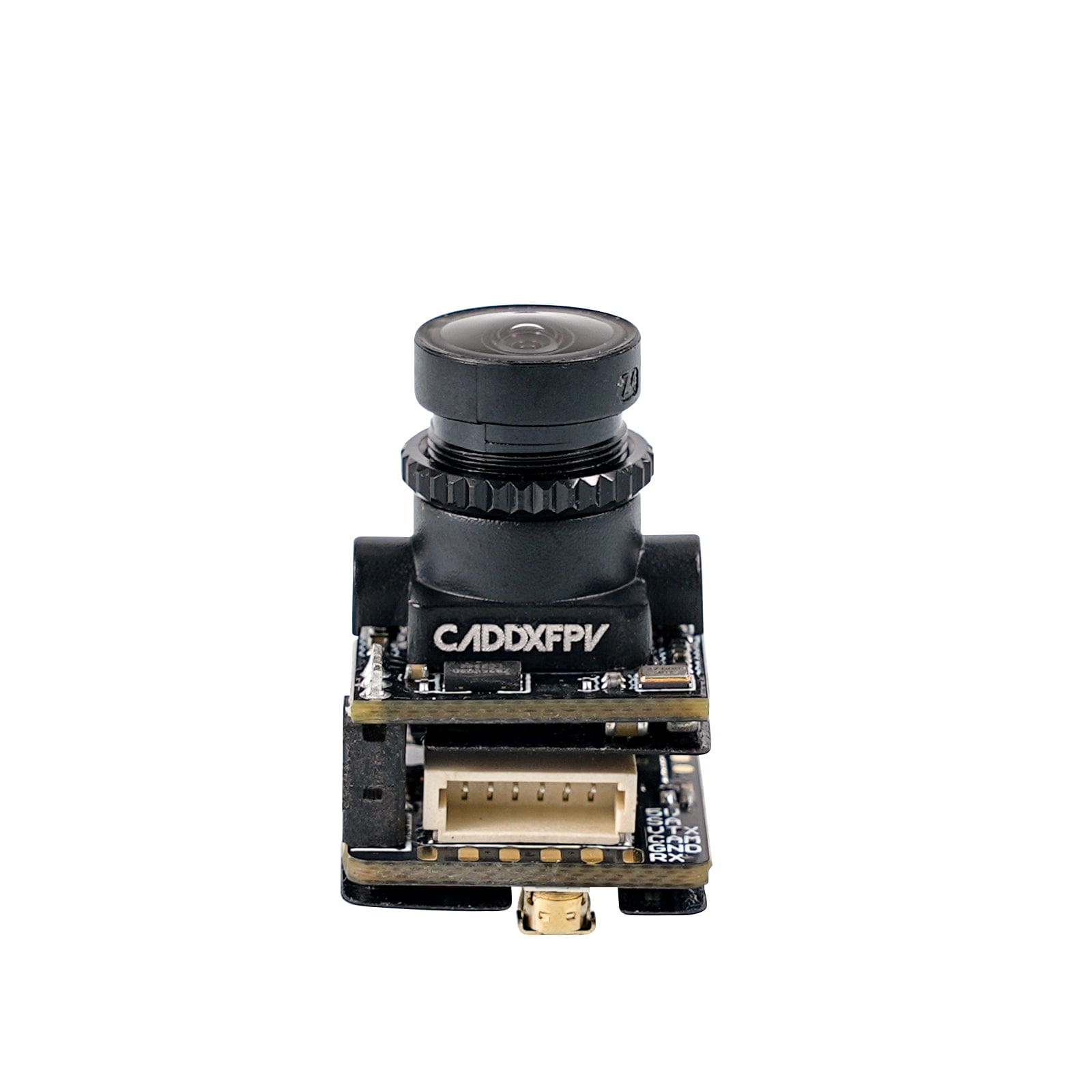

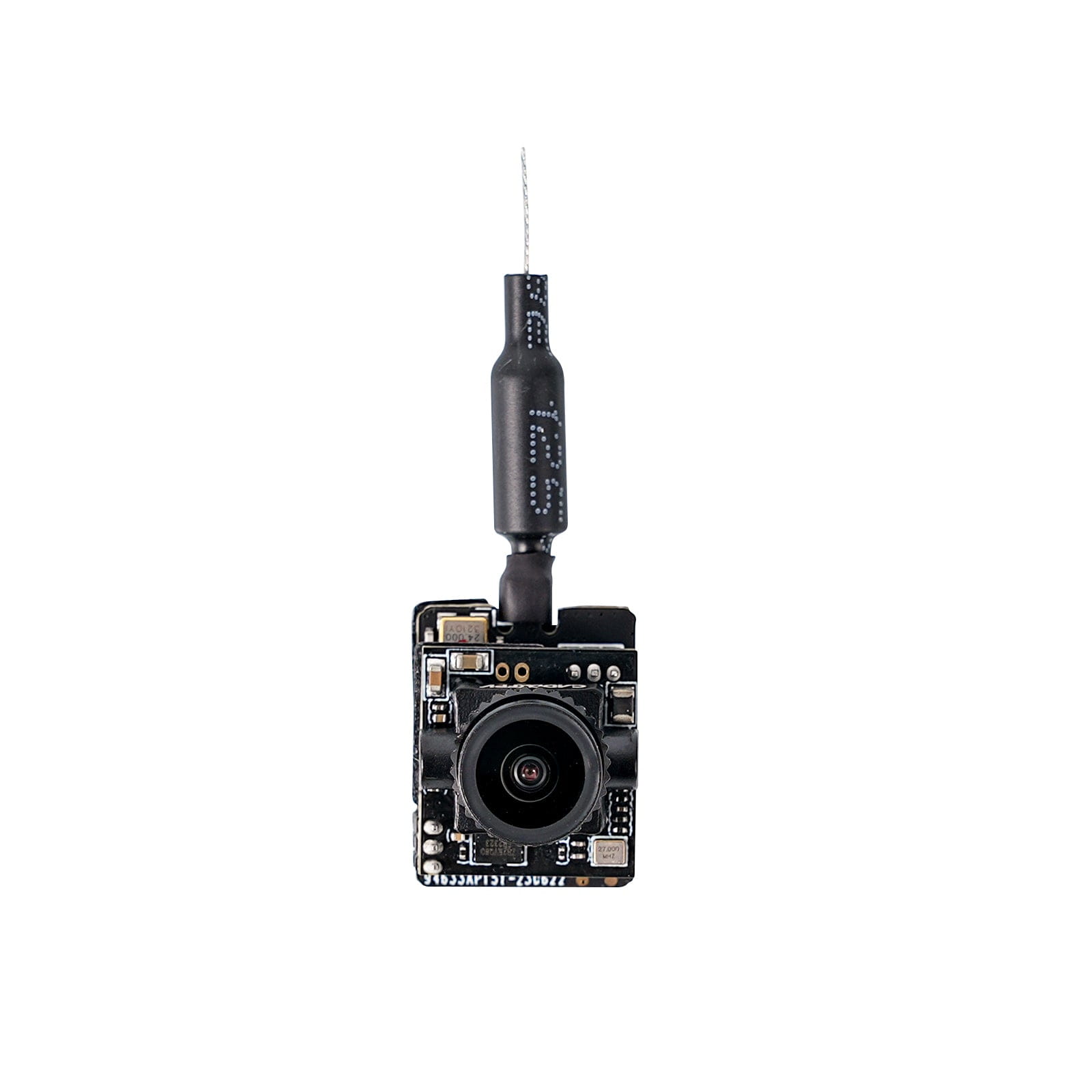

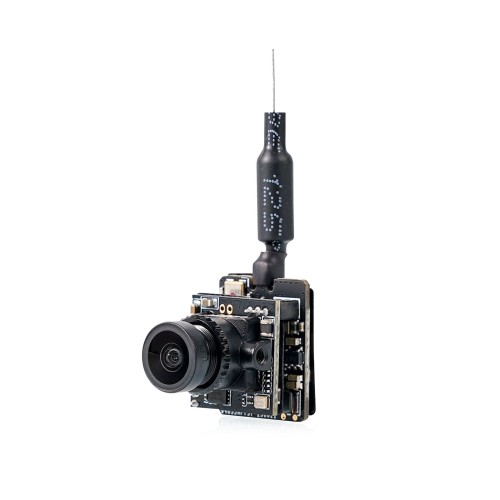

The modular C04 Camera and VTX Module for the Cetus X quadcopter offer easy installation and usage. Simply plug and play. With its lightweight 4.14g design and 1200TVL resolution, this camera delivers outstanding performance for micro FPV quadcopters. It provides a wide 160° field of view and utilizes a 1/3'' CMOS sensor for crisp and vibrant images. By purchasing and replacing it on your Cetus X quadcopter, pilots can secure emergency backup and minimize downtime.

Bullet Point

• The modular design allows for easy installation and use, without the need for professional soldering skills. Simply plug and play directly.
• The max output power is up to 350~400mW, so pilots can fly longer, and farther explore more possibilities, and have fun.
• Miniature, and lightweight design, weight at only 4.14g with antenna and adjustable output power for longer-distance flying.
• 1200TVL resolution and 1/3" CMOS sensor ensure good quality and a clear image.
• With a wider 160° FOV, it can record wide and beautiful scenes.
• If you have the Betaflight Version flight controller for your Cetus X quadcopter, please select the M04 Version C04 Camera and VTX Module. Otherwise, choose the Cetus V2 Version.

Specification

• Item: C04 Camera and VTX Module(M04 VTX/Cetus VTX V2)
• Camera: C04 FPV Micro Camera
• Image Sensor: 1/3" CMOS Sensor
• Horizontal Resolution: 1200TVL
• FOV: 160°
• Video System: NTSC (4:3)
• Output power: 25-400mW(M04 VTX)/ 25-350mW(Cetus VTX V2)
• Supply Voltage: 5V
• Size: 14.5*21*23.5mm(without antenna)
• Weight: 4.14g(with antenna)
• Frequency: 5 bands 40 channels with Raceband(M04 VTX)，1 band 8 channels(B band)(Cetus VTX V2)

Diagram

The below picture shows the size of the C04 Camera and VTX Module.

The below picture shows the frequency of the C04 Camera and VTX Module.

Plug-N-Play Connector

The camera and VTX have already soldered together, plug and play directly. It can be easily installed and used without professional soldering skills. Suitable for Cetus X Brushless Quadcopter and Cetus X Brushless Whoop Frame.

Recommend Parts

• Frame: Cetus X Brushless Whoop Frame
• Drones: Cetus X Brushless Quadcopter

Package

• 1 * C04 Camera and VTX Module(M04 Version)
• 1 * Cable
• 4 * Screws
