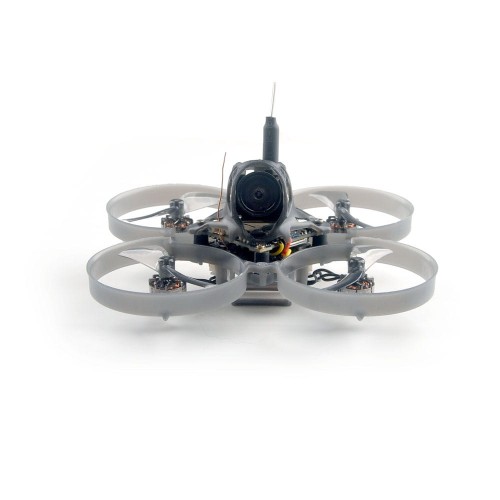

Mobula7 HD 1S SPI ELRS FlyFPV.pl

Mobula7 1S HD version is a light and efficiency 75mm brushless whoop which provide 1080P HD video record function. A highly integrated AIO Flight Controller, supports ESC with a maximum current output of 12A. We added blackbox for this 1s 75mm HD recorder whoop. Now it could support gyroflow. Although the external blackbox is not install perfectly and insert SD card is not friendly to most of the people, however we still think it’s really excited for this small whoop could record a video with gyroflow steady and keep safe flying .

Features:
X12 5-IN-1 AIO flight controller
VTX Power up to 400mw
ELRS V2.0 Support
NEW RS0802 KV20000 motors
1080P HD Video record
Blackbox Ready support GYROFLOW
Smooth and powerful
Compatible for 1S Lipo/LIHV
Recommend 1S 450mah/550mah/650mah batteries (Not include)

Specifications:
Brand Name: Happymodel
Item Name: Mobula7 1S HD 75mm Micro FPV whoop drone
Wheelbase: 75mm
Size: 99mm*99mm*45.5mm
Weight: 33g

Motor	Mode: RS0802 KV20000 Configu-ration:9N12P Stator Diamter:8mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.Len):Φ10.5mm13.5mm Weight(g):2.0g No.of Cells(Lipo):1S only
Propellers	Weight:0.24g Material:PC Pitch:1 inch Props Dia:40mm Center Thickness:5mm Center Hole Dia:1.5mm
Flight controller	X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280 MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: ICM20689 or BMI270(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw Built-in ExpressLRS 2.4G Built-in voltage detection Built-in current sensor
Onboard 4in1 ESC	Power supply: 1S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware: Z_H_30_REV16_7.HEX Default protocol: DSHOT300 Support Bluejay firmware When use Blujay firmware with 48khz, should set startup power to 1100/1200
Onboard SPI ExpressLRS 2.4GHz Receiver	Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V2.0 RF Frequency: 2.4GHz Antenna : Enameled copper wire length 30mm Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn’t flash separately ExpressLRS firmware
Onboard 5.8g OPENVTX	Firmware version: OPENVTX Smartaudio v2.1 PIT Mode support RCE Mode support Channels:48ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw)
Runcam Split3-Lite	Model: RunCam Split3-Lite Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3) Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps Video File Format: MOV Image Resolution:2 MP TV Mode: NTSC (720480)/PAL (720576) Switchable Interface: JST 1.25mm / UART and SH 1.0mm Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III) Hole Distance of Installation: 25.525.5mm PCB Size: 2929mm Lens Module Size: 14*14mm Lens Specs: M9 Power Input: DC 5-20V(Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.) Working Current: 450mA @5V
External Blackbox and voltage booster module	Size:1815.54.5 With Built-in Voltage booster module Weight:1.5gram SD Card support max to 32GB SD Card need to use FAT32 Format Notes: Need to careful to insert the TF SD Card , and don’t pull it out while install the battery.
