Mobula6 ELRS 2.4GHz SE0802 19000 kV
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis

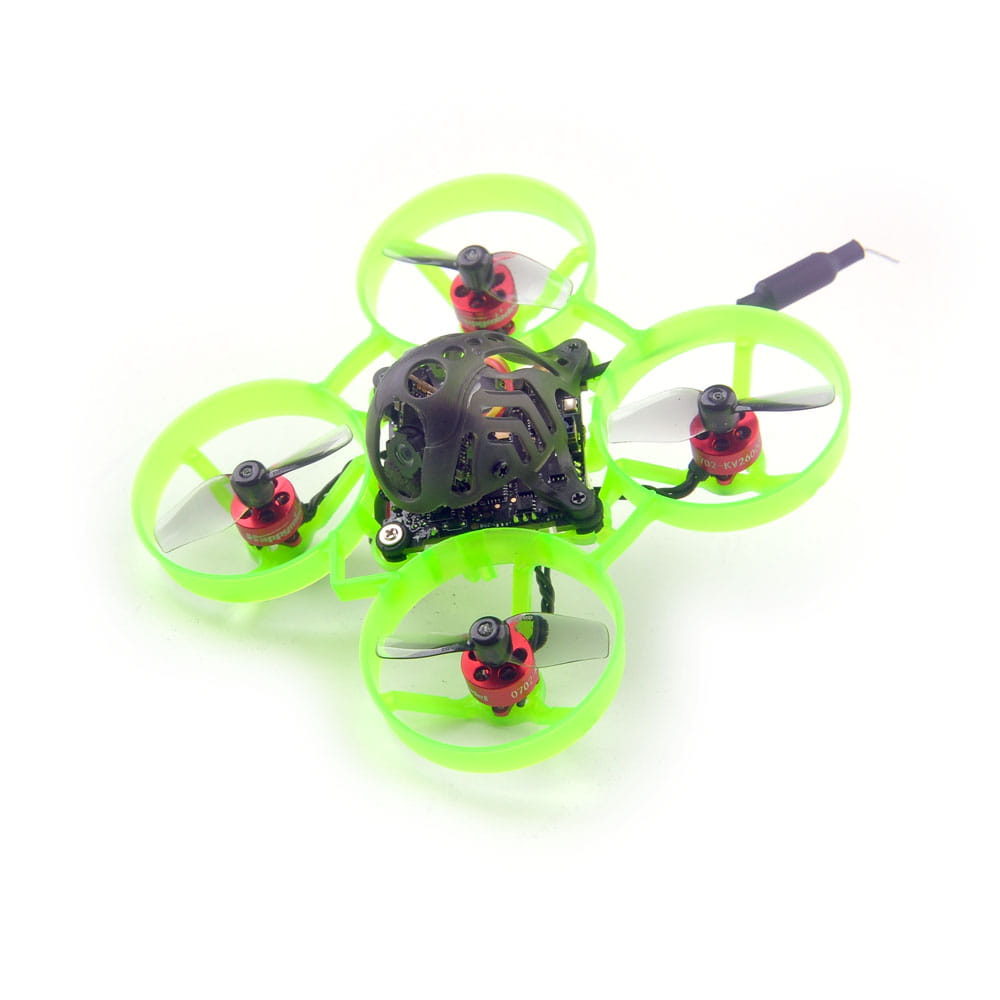

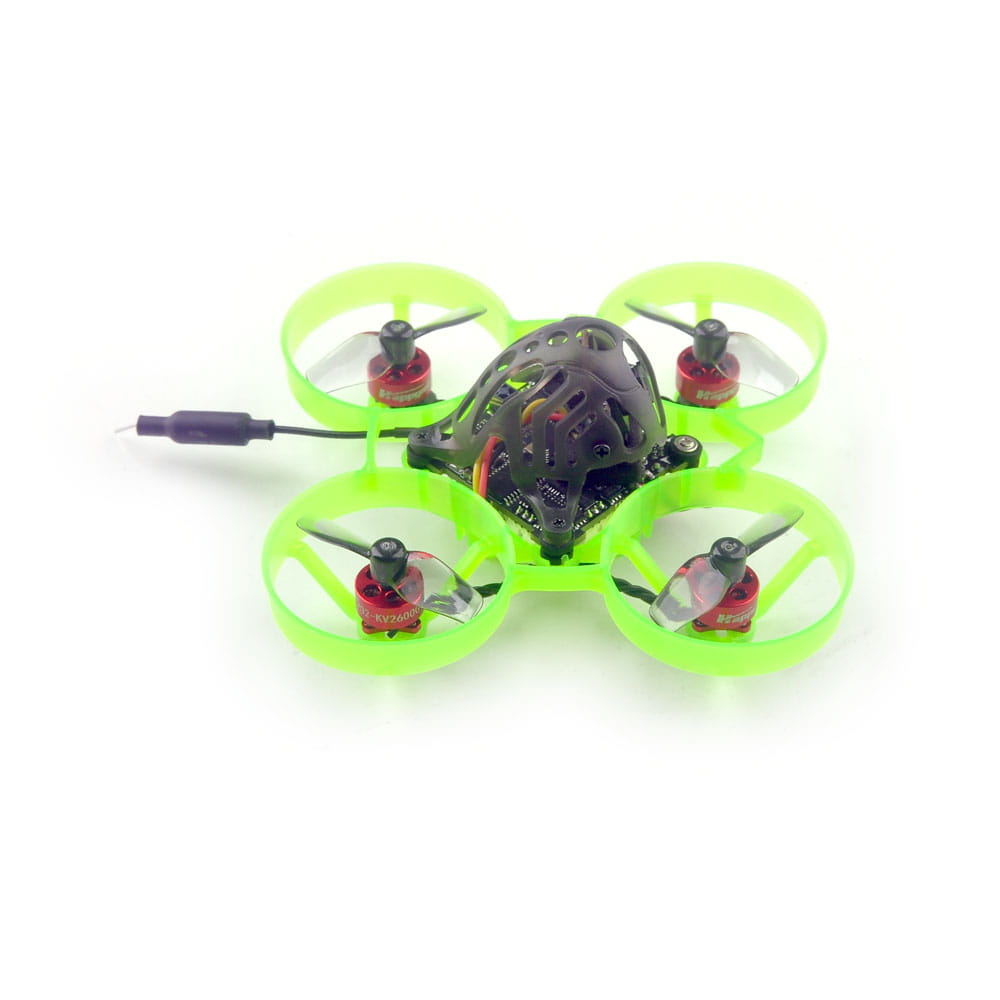

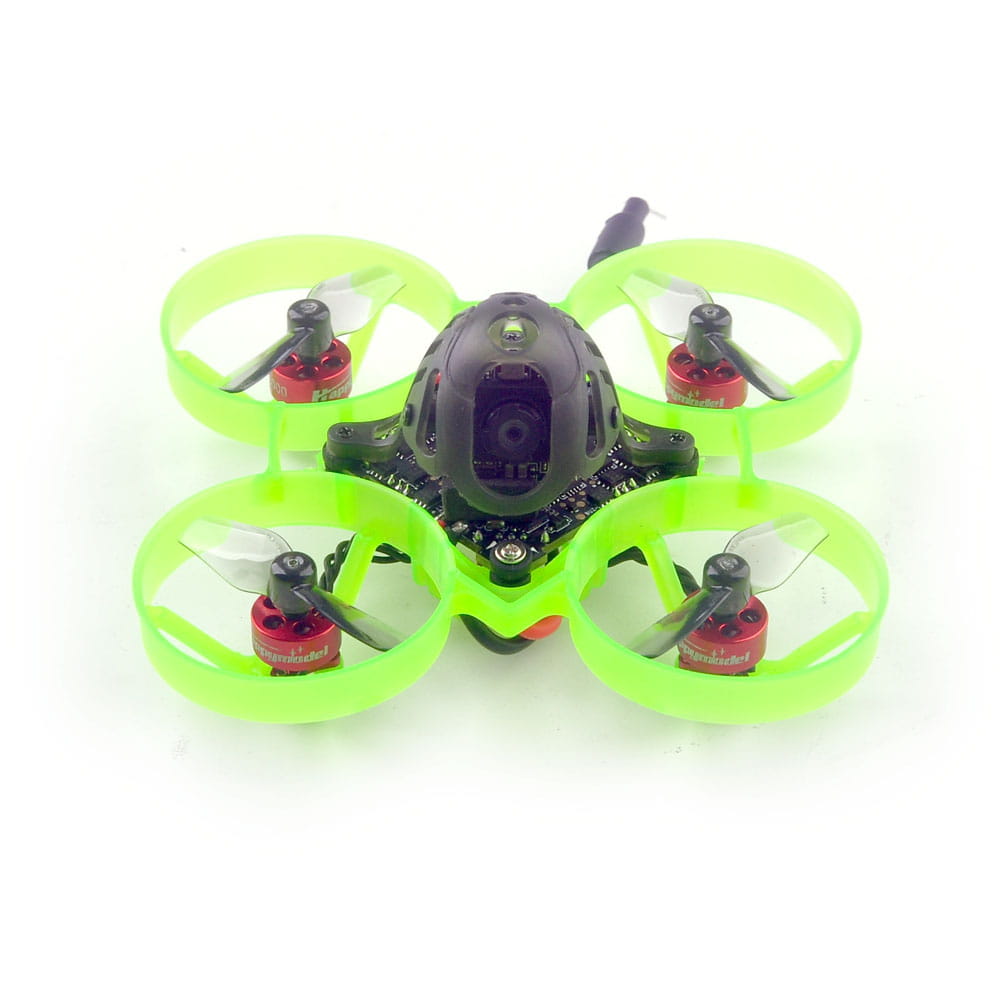

Dron FPV Mobula6 ELRS 2.4GHz Standard Edition z silnikami SE0802 19000kV
Zawartość zestawu:
- dron Mobula6 ELRS 2.4GHz Standard Edition z silnikami SE0802 19000kV
- 8 x śmigła Gemfan 1210 31mm bi-blade (4cw+4ccw)
- ładowarka USD do LiPo 1S
- zapasowe śruby, śrubokręt, klucz do zdejmowania śmigieł
- Brak akumulatorów w zestawie
Uwaga - na zdjęciach może być widoczna inna wersja silników, należy traktować je w tym aspekcie wyłącznie poglądowo.
Aktualnie dostępne modele zbudowane są na niebieskiej ramie.
Opis i specyfikacja producenta [ENG]:
ExpressLRS is currently the most popular remote control link system. It has the characteristics of low latency and high packet rate, and its link quality is very reliable. Now we are about to release Mobula6 equipped with ExpressLRS RC link system, the new Mobula6 elrs would coming out with a new 0702 brushless motor, that would be the lightest brushless motors all over the world. We’re sure this would be a good option for you in the Tiny Whoop Season.
Features:
AIO Flight controller with ELRS Receiver and 5.8G VTX
Super light 1S 65mm Brushless whoop only 18.7g
Equipment with the lightest brushless motors-SE0702 only 1.46gram
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Specifications:
Brand Name: Happymodel
Item Name: Mobula6 ELRS 1S 65mm Brushless whoop drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*37mm
Weight: 18.7g
Receiver option:
2.4GHz ExpressLRS SPI receiver
Spare parts specifications:
| Motor |
SE0802: SE0702: Mode: SE0702 KV26000 |
| Propellers | Weight:0.19g Material:PC Pitch:1 inchProps Dia:30mm Center Hole Dia:1mm |
| Flight controller | ELRS F4 2G4 flight controller V3.1 built-in SPI expresslrs 2.4G receiver MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in ExpressLRS 2.4G Built-in 5V 1A BEC Built-in voltage detection |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_7.HEX Default protocol: DSHOT600 |
| Onboard SPI ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHzAntenna : SMD antenna Telemetry output Power: <12dBmReceiver protocol: SPI ExpressLRS Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module ExpressLRS version 1.0.0 or 1.0.1 both compatible |
| Onboard 5.8g VTX | Output power: 25mw~200mw Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race bandSmartaudio ready |
| Runcam Nano3 | Model: RunCam Nano 3 Image Sensor: 1/3″ CMOS Horizontal Resolution: 800TVL Lens : 2.1mm(M8) FOV 160° Signal System: PAL/NTSC Non Switchable S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V 120mA@3.3V Housing Material: ABS Net Weight: 1.2g Dimensions: L14mm*W14mm*H9mm |
| Lipo Battery | Capacity:300mAh Voltage:3.8v Continuous Discharge Rate: 30C Size: 57mmx12mmx7mm Weight: 8gConnector: PH2.0 |
