Mobula6 ECO 2024 ELRS
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis

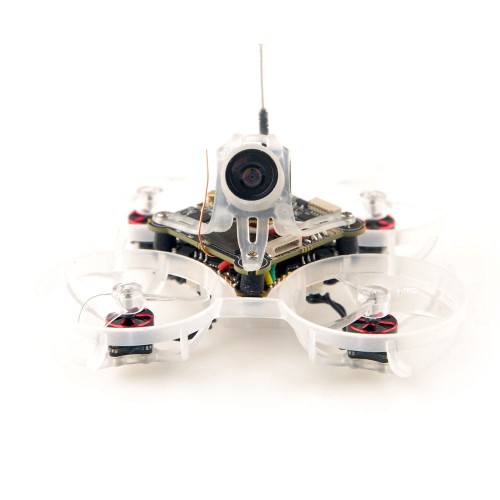

Mobula6 ECO 2024 ELRS
Najnowszy whoop od Happymodel kompatybilny z systemem HDZERO.
Opis i specyfikacja producenta [ENG]:
Features:
AIO Flight controller with Serial ELRS Receiver
Compatible with HDZERO system
Equipment with the lightest brushless motors-SE0702 only 1.49gram
HDZERO NEW ECO VTX and Camera ready
Smooth and powerful
Compatible for 1S Lipo/LIHV
Onboard blackbox read
Specifications:
Brand Name: HAPPYMODEL & HDZERO CO-Brand
Model: Mobula6 ECO 2024
Frame wheelbase: 65mm
Weight: 23.16 gram without battery
Size: 81mm*81mm*45mm
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: GNB A30
Package includes:
| Item Name | Qty |
| Mobula6 2024 1S 65mm whoop Drone Frame +Canopy | 1 |
| SuperX HD ELRS AIO flight controller | 1 |
| SE0702 KV28000 brushless motor | 4 |
| Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw) | 1 |
| HDZero ECO VTX | 1 |
| HDZero ECO Camera | 1 |
| Spare Canopy | 1 |
| Propeller disassemble tool | 1 |
| Screw driver | 1 |
| Motor | Mode: SE0702 KV28000 Configu-ration:9N12P Stator Diamter:7mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.*Len):Φ9.5mm*14mm Weight(g):1.49g No.of Cells(Lipo):1S only |
| Propellers | Materials: PC Inch: 31mm Pitch: 0.8 in Weight: 0.21g Mount hole diameter: 1mm |
| Flight controller
SuperX HD ELRS |
Betaflight 4.4.2 firmware ready Firmware target: CRAZYBEEF4DX MCU:STM32F411CEU6 (100MHz, 512K FLASH) Sensor: BMI270 or ICM42688P (SPI connection) Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update Bluejay ESC Firmware ready Built-in 5V 1A BEC Built-in voltage detection No betaflight analog osd chip |
| Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support ESC-Configurator and BLHELI_S Suite configurator Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz Default protocol: DSHOT300 |
| Onboard Serial ExpressLRS 2.4GHz Receiver | RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Receiver protocol: CRSF Default firmware version: ExpressLRS V3.0.1 The same hardware with Happymodel EP1 receiver Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through |
| HDZERO ECO VTX | Composite HD Video interface 1S-3S Input 25mW/200mW RF output 25.5×25.2 M2 soft mounting Antenna Retention 32.4×32.5mm (29x29mm inner) 4.5grames/4mm Thickness (w/o shielding) |
| HDZERO ECO Camera | Image Sensor 1/3” Resolution: 720@60fps 4:3 LENS: FOV D:150° H:120° V:98° Shutter: Rolling Shutter Net Weight: 1.6g (With Cable) Dimensions: L14mm*W14mm*H13mm |
