Dron FPV Mobula8 HDZERO ELRS
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis

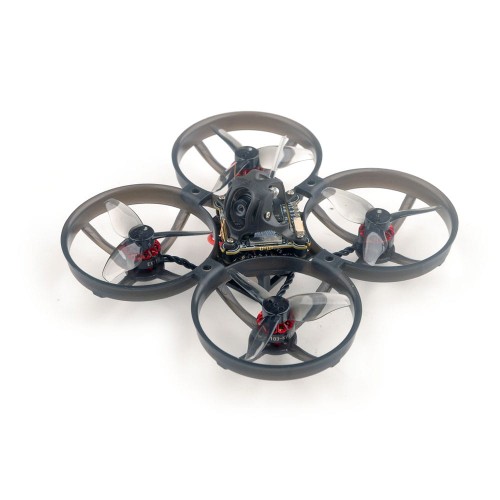

Dron FPV Mobula8 HDZERO ELRS
Mobula8 z cyfrowym systemem HDZERO oraz wbudowanym odbiornikiem ELRS.
Współpracuje z akumulatorami 1S oraz 2S, jednak rekomendujemy 2S w przedziale 450-650mAh.
Wtyk akumulatora: XT30
Rozmiar ramy: 85mm
Waga: 46,5g
Wymiary: 120 x 120 x 50 mm (ze śmigłami)
Zawartość zestawu:
- 1 x dron Mobula8 HDZERO ELRS
- 8 x śmigła Gemfan Hurricane 2023-3
- 1 x zapasowe canopy
- zestaw akcesoriów: śrubokręt, przyrząd do zdejmowania śmigieł, zapasowe śrubki
Specyfikacja [ENG]:
Features:
- Digital HD FPV experience
- New CrazyF405 ELRS HD flight controller
- Powerful and Smooth
- UART ExpressLRS receiver
- Built-in blackbox for Gyroflow and PID Tune
| Motor | Mode: EX1103 KV11000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm Weight(g):3.8g No.of Cells(Lipo):1-2S |
| Propellers | Weight:0.88g Material: PC Pitch:2.3inch Props Dia:52.17mm Center Thickness:5mm Center Hole Dia:1.5mm |
| Flight controller | MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) GYRO Sensor: BMI270 (SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Serial ExpressLRS 2.4G Built-in BMP280 Barometer Built-in 8MBp blackbox Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470 |
| Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeli_S Bluejay firmware Factory firmware: Bluejay ESC V0.19 Firmware target: Z-H-30 Default protocol: DSHOT300 When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200 |
| Onboard UART ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Default firmware version: ExpressLRS V3.0.1 Firmware target: HappyModel EP 2400 RX Could update firmware via ExpressLRS configurator |
| HDZERO Version | HDZero Nano Lite Camera 14x16x11 mm 1.5gram 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor Excellent low light performance Fov: 4:3: D:130° H:108° v:84° 16:9:D:122° H:108° V:65° HDZero Whoop Lite VTX 1-3S Input 25mW/200mW RF Output-SmartAudio Support 25.5×25.5 M2 Soft Mounting- Antenna Retention Removable Shielding Box- 32.5×32.5mm(29x29mm inner) 4.5grams/4mm Thickness (without shielding) |
