Dron FPV Bassline SPI ELRS
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis

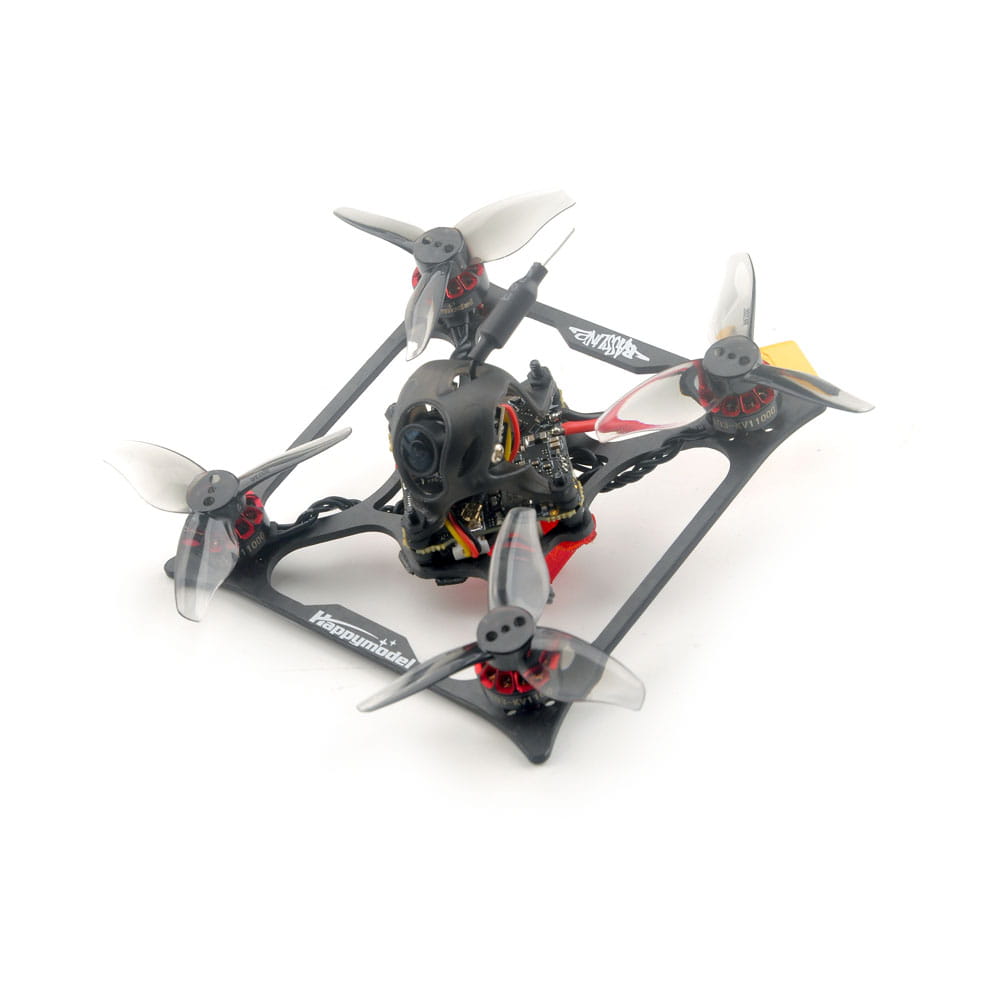

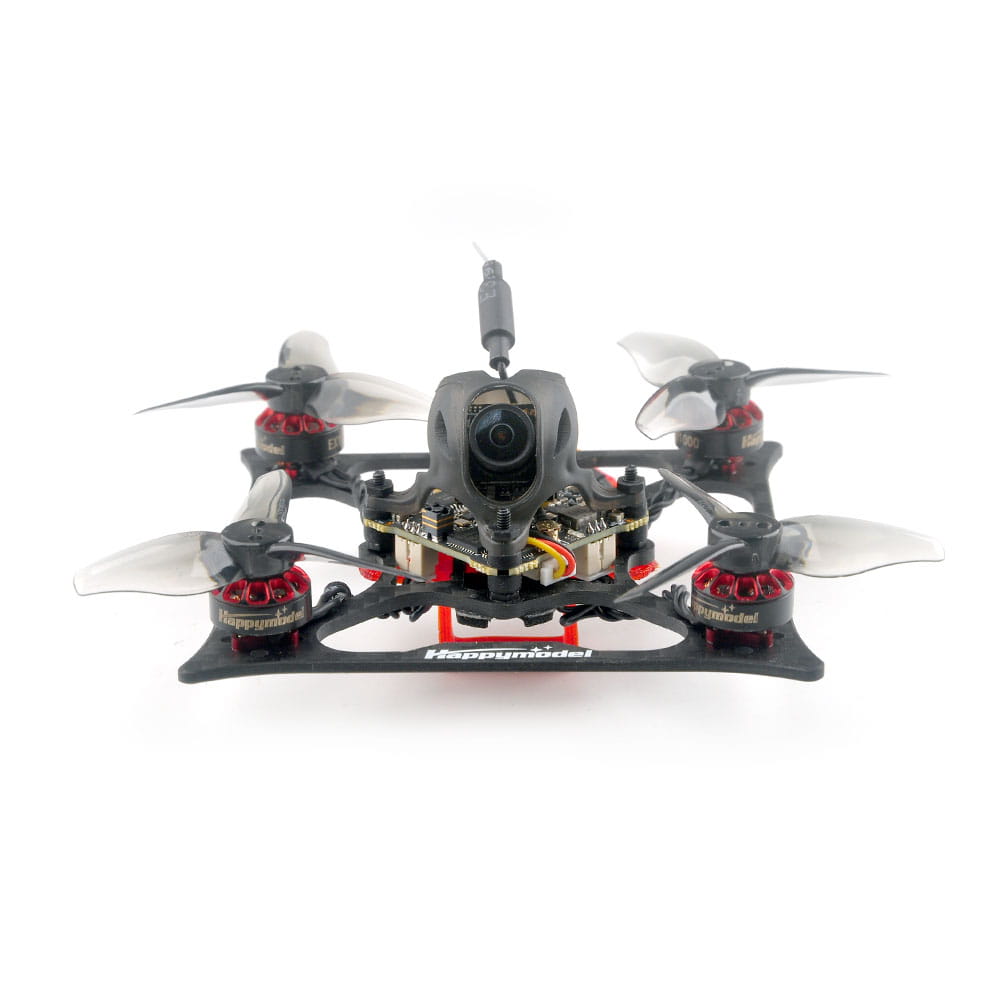

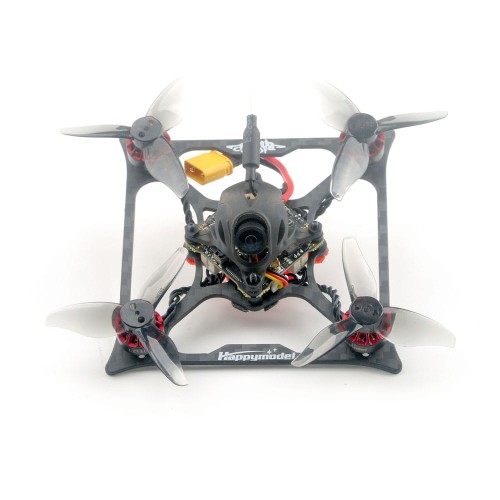

Dron FPV Bassline SPI ELRS
Analogowa wersja drona Bassline z wbudowanym odbiornikiem ELRS.
Współpracuje akumulatorami 2S, rekomendujemy pojemność w przedziale 350-650mAh.
Wtyk akumulatora: XT30
Rozmiar ramy: 90mm
Waga: 40g
Wymiary: 115 x 115 x 40 mm (ze śmigłami)

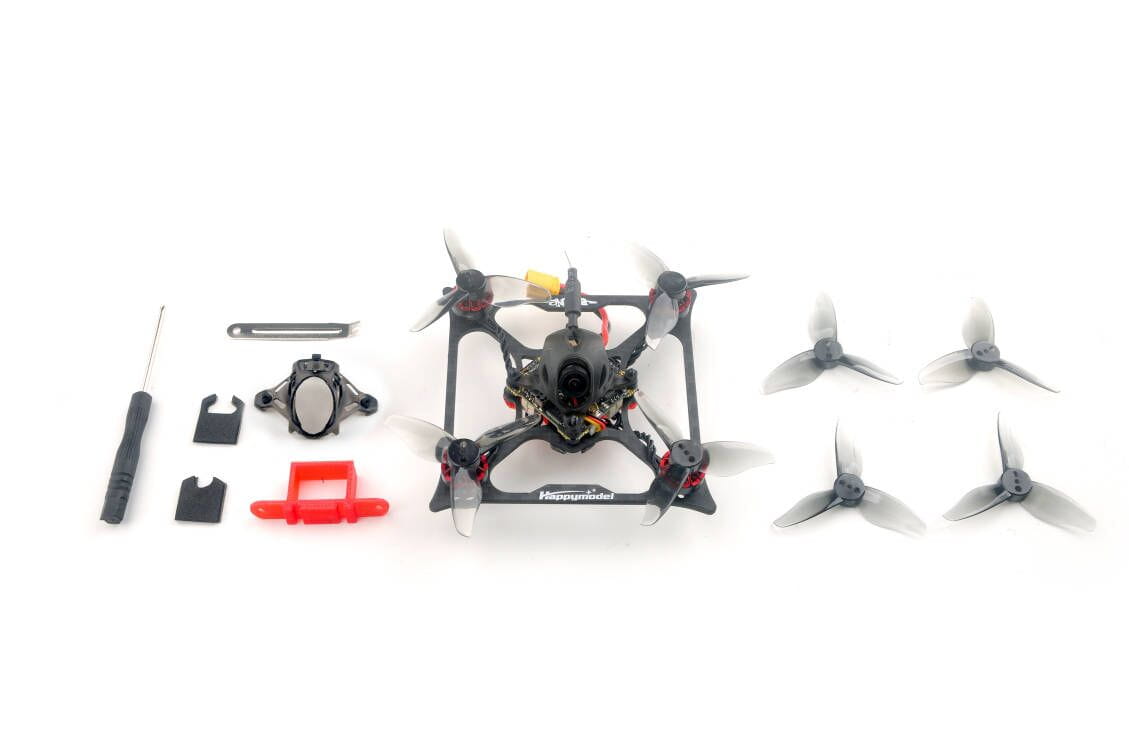

Zawartość zestawu:
- 1 x dron Bassline ELRS
- 8 x śmigła Gemfan Hurricane 2023-3
- 1 x dodatkowe canopy na kamerę 14x14mm
- 2 x mocowanie baterii (wydruk 3D TPU), max wymiary baterii 17x13mm
- zestaw akcesoriów: śrubokręt, przyrząd do zdejmowania śmigieł, zapasowe śrubki
Specyfikacja [ENG]:
Features:
- X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and OPENVTX
- VTX Power up to 400mw
- Support ELRS V3.0 (Need to upgrade firmware)
- Powerful EX1103 KV11000 motors
- CaddxFPV Ant FPV camera
- Recommend 2S 350mah/450mah/550mah/650mah battery (Not include)
- Battery tray size: Maximum support for batteries with a width of approximately 17mm and a height of approximately 13mm
Specifications:
- Brand Name: Happymodel
- Item Name: Bassline 2S 2inch Micro FPV toothpick drone
- Wheelbase: 90mm
- Size: 115mm*115mm*40mm
- Analog version Weight: 40gram
| Motor | Mode: EX1103 KV11000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm Weight(g):3.8g No.of Cells(Lipo):1-2S |
| Propellers | Weight:0.88g Material: PC Pitch:2.3inch Props Dia:52.17mm Center Thickness:5mm Center Hole Dia:1.5mm |
| Flight controller | X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280 MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: ICM20689 or ICM42688P(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw Built-in ExpressLRS 2.4G Built-in voltage detection Built-in current sensor |
| Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Default Factory firmware: Z_H_30_REV16_7.HEX Default protocol: DSHOT300 Support Bluejay firmware |
| Onboard SPI ExpressLRS 2.4GHz Receiver | Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V2.0 RF Frequency: 2.4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn’t flash separately ExpressLRS firmware Could flash FC firmware to support ExpressLRS v3.0 TX module |
| Onboard 5.8g OPENVTX | Firmware version: OPENVTX Smartaudio v2.1 PIT Mode support RCE Mode support Channels:48ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) |
| Caddx ANT 1200tvl camera | Image Sensor: 1/3″ CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE: 16:9 or 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES WDR: Global WDR DNR: 3D DNR Dimensions: 14*14mm(with bracket to 19*19mm) Wide Power Input: DC 3.7-18V Weight: 2g (N.W.) |
