Dron BetaFPV Pavo20 ELRS

Dron FPV Pavo20 (bez VTX)

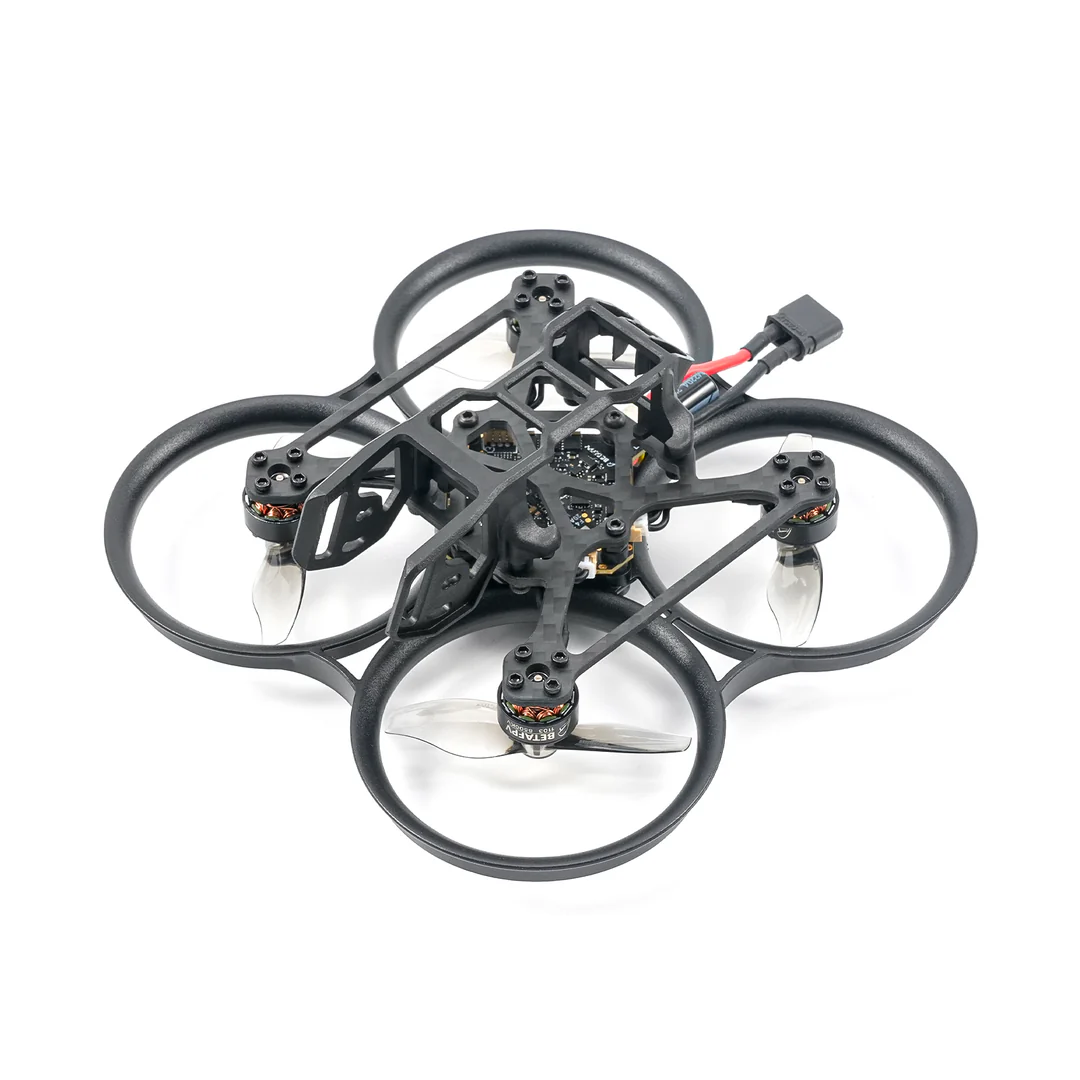

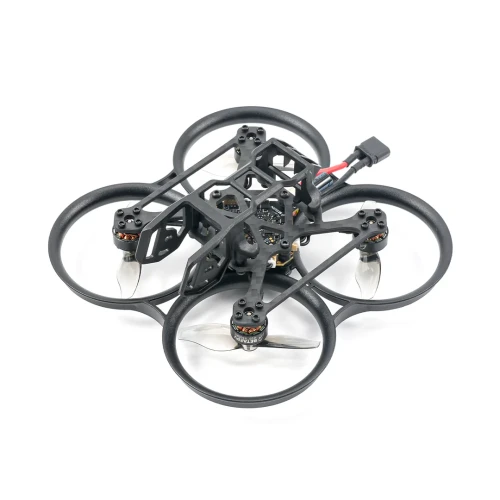

Pavo 20 został zaprojektowany jako 2-calowy cinewhoop DJI O3 o wadze poniżej 150g, kompatybilny również z systemami Caddx Vista i RunCam Link. Innowacyjna osłona wykonana z materiału PA12 o pogrubionym przekroju, wykorzystuje zasady aerodynamiki i perfekcyjnie współpracuje z ulepszonym systemem napędowym 3S, co zapewnia niespotykaną siłę ciągu. Uchwyt kamery został całkowicie przeprojektowany, co gwarantuje precyzyjną ochronę, a także umożliwia łatwe zamontowanie pasków COB LED. Ten cud inżynierii oferuje wyjątkowe osiągi zarówno w pomieszczeniach, jak i na zewnątrz, będąc doskonałym przykładem quadkopterów kompatybilnych z DJI O3.

Najważniejsze cechy

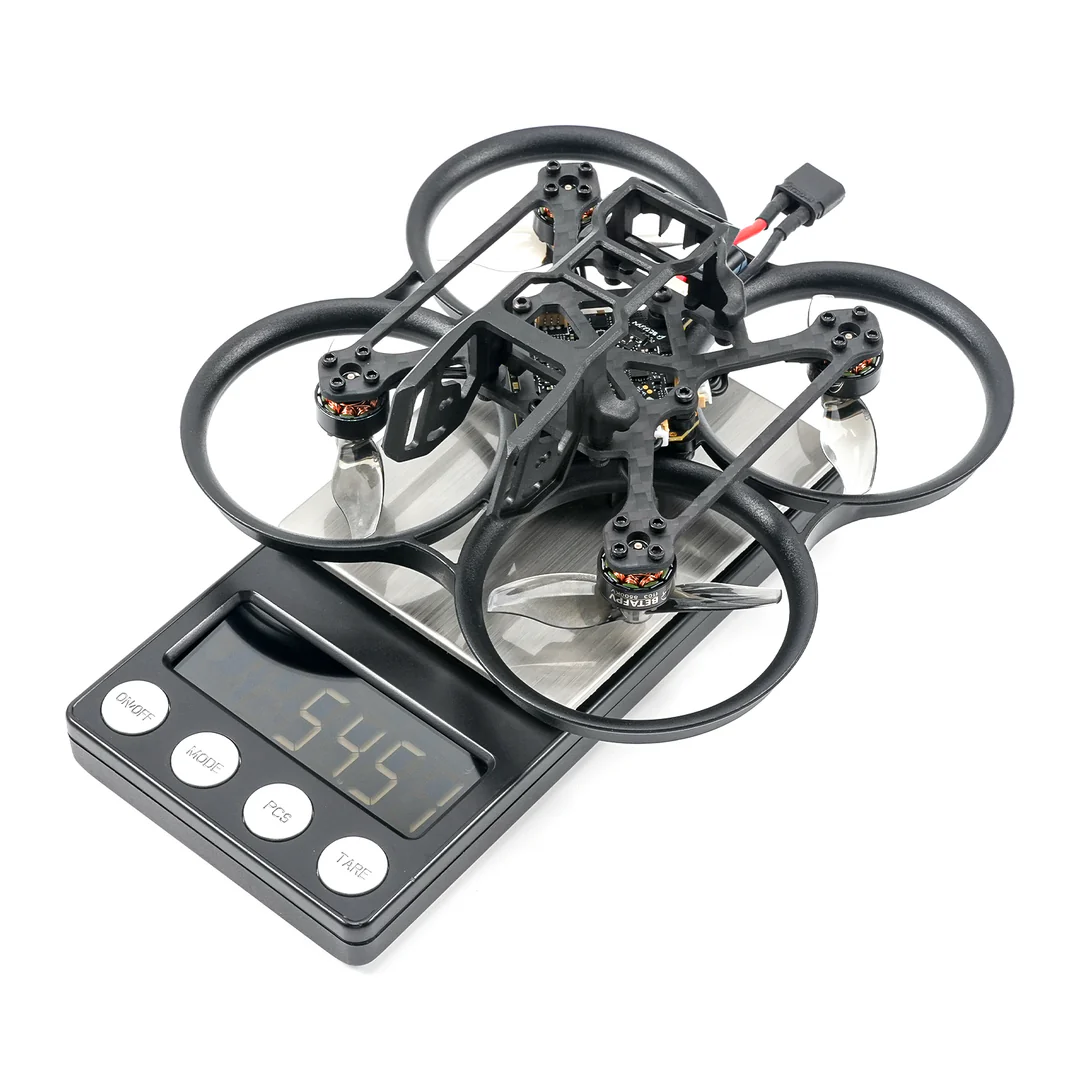

• Pavo20 to idealny wybór na lekkiego, 2-calowego cinewhoopa DJI O3 o wadze poniżej 150g, przeznaczonego do użytku wewnętrznego i zewnętrznego.
• Zintegrowany uchwyt HD VTX wykonany metodą wtryskową umożliwia łatwy montaż. Panel boczny kamery oraz 4-punktowy system mocowania precyzyjnie chronią obiektyw, zapewniając pełną ochronę.
• Innowacyjny duct z pogrubionym przekrojem, wykonany z materiału PA12, wykorzystuje zasady aerodynamiki i doskonale współpracuje z ulepszonym, mocnym systemem napędowym 3S, co zapewnia wyjątkową siłę ciągu.
• Otwarta kieszeń na pasek do baterii, dostosowana do baterii 2~3S*, z dodatkowymi bocznymi ograniczeniami, zapewnia stabilność.
• Nowy kontroler lotu F4 2-3S 20A AIO FC V1 waży tylko 5.92 g i został zoptymalizowany pod kątem cyfrowych VTX. Zwiększona moc obliczeniowa, szybka reakcja oraz stabilny lot czynią go idealnym wyborem dla HD whoopów.

Uwaga: rama Pavo20 pozwala na montaż baterii 2-4S, jednak ten dron przystosowany jest wyłącznie do baterii 3S.

Specyfikacja

Caution: Please correctly connect the battery's positive and negative terminals to prevent drone damage.

Stworzony pod DJI O3

Pavo20 is a micro cinewhoop designed for an immersive flight experience both indoors and outdoors. It handles 4K/1080P aerial cinematography, showcasing stunning visuals in any environment. With its 90mm wheelbase and aggressive powerful propulsion system, its unique whoop duct boosts thrust and accommodates COB LED strips, also adding a touch of creativity to your shots.  Experience the pinnacle of innovation with DJI O3 and embark on a new level of aerial cinematography whether you use the Pavo20 or Pavo Pico.

Kamera & system VTX

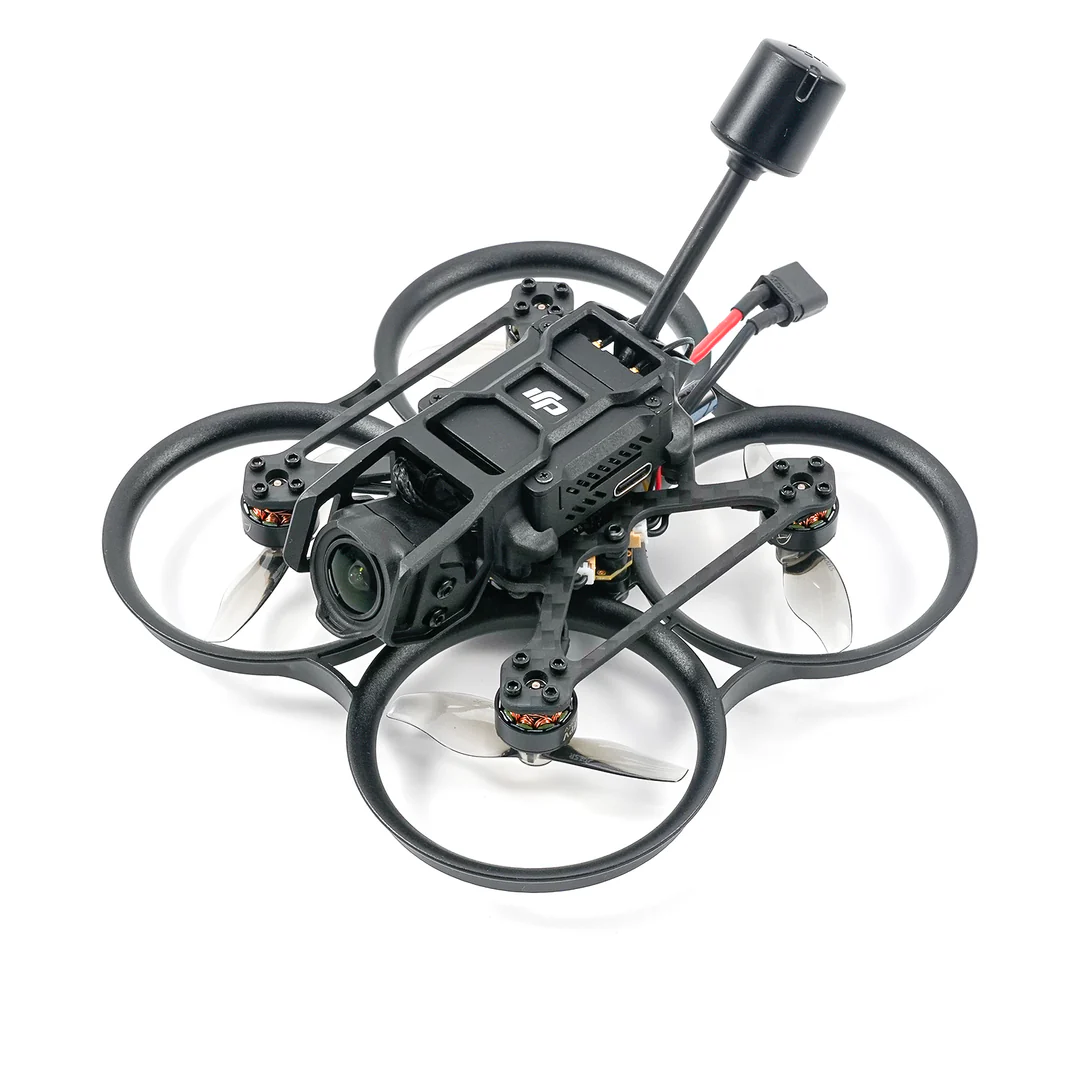

Pavo20 supports various types of HD VTX. DJI O3 Air Unit supports up to 1080P using dual-band transmission technology for better signal stability. The Caddx Vista supports up to 720P with low latency and superior image quality performance. The RunCam Link is compatible with popular FPV systems like formers, providing versatile solutions for pilots. The customized HD VTX mounting bracket has a split design, making it effortless to install for pilots DIY, and explore more possibilities while ensuring HD image quality.

Rama Pavo20 (Frame Kit)

Pavo20 Frame Kit, with a wheelbase of 90mm, is constructed with a crash-proof PA12 thickened whoop duct. Its reinforced cross-section design enhances the strength and blast resistance, ensuring durability in demanding flight conditions. It employs the principles of aerodynamics and synergizes flawlessly with an enhanced powerful propulsion system to deliver unparalleled thrust.

Precyzyjna ochrona cyfrowego VTX

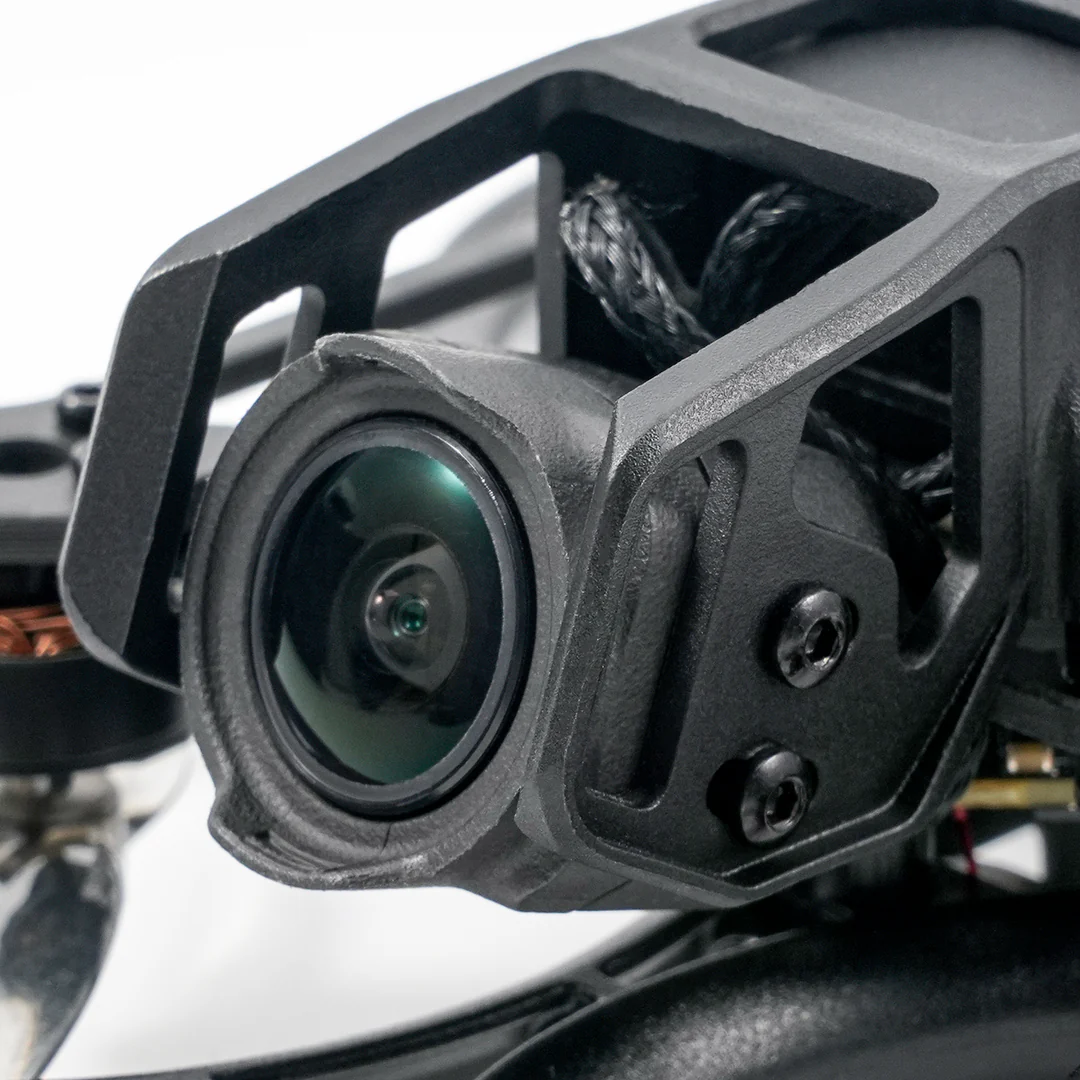

The camera side panel and 4-point fixation hole design effectively safeguard the lens while allowing for easy installation of ND filters, guaranteeing uncompromised lens protection, and eliminating any concerns about angle deviation after intense flights. Insert copper nut design, employing an integrated injection molding technique, eliminating the hassle of adjusting screw tightness and streamlining the installation. Open-ended battery strap slot that accommodates a wide range of batteries*. Side-limitation slots ensure secure and stable battery placement, preventing any potential displacement during flights.

Note: 2-4S is for the Pavo20 frame, this Pavo20 quadcopter only supports 3S batteries.

The vibration problems and solutions encountered by Pavo20 are consistent with Pavo Pico. Please refer to Pavo Pico DJI O3 Vibration Problem.

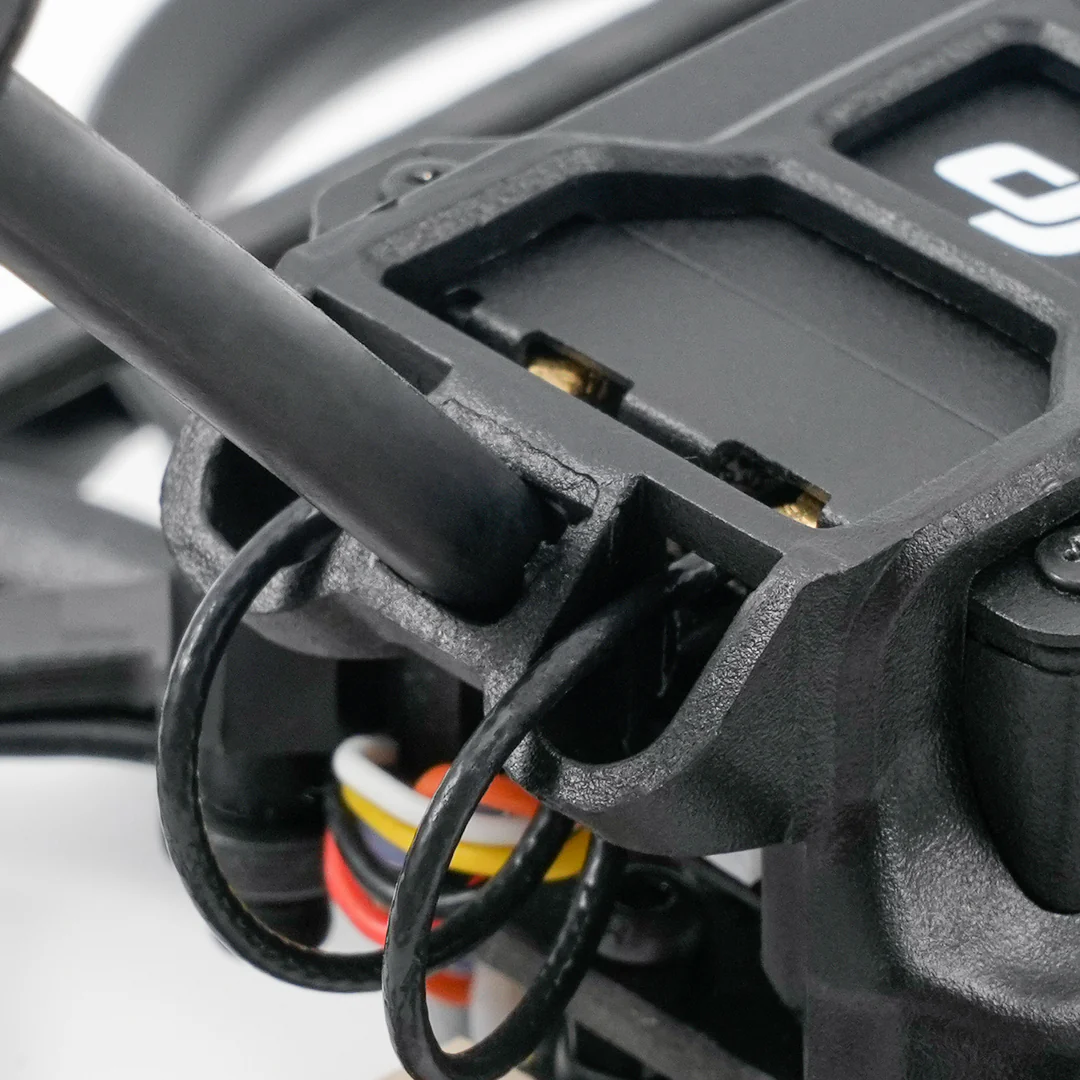

Moreover, the integrated injection molding HD VTX mounting bracket boasts the utilization of an insert copper nut, facilitating effortless installation, equipped with half-thread screws for eliminating the trouble of adjusting the tightness of the screws, which also enhances anti-vibration and ensuring stable and smooth HD images. At the same time, it can be adapted to the Pavo Pico.

Click to watch the installation guide video for the DJI O3 Air Unit.

Wydajny układ napędowy

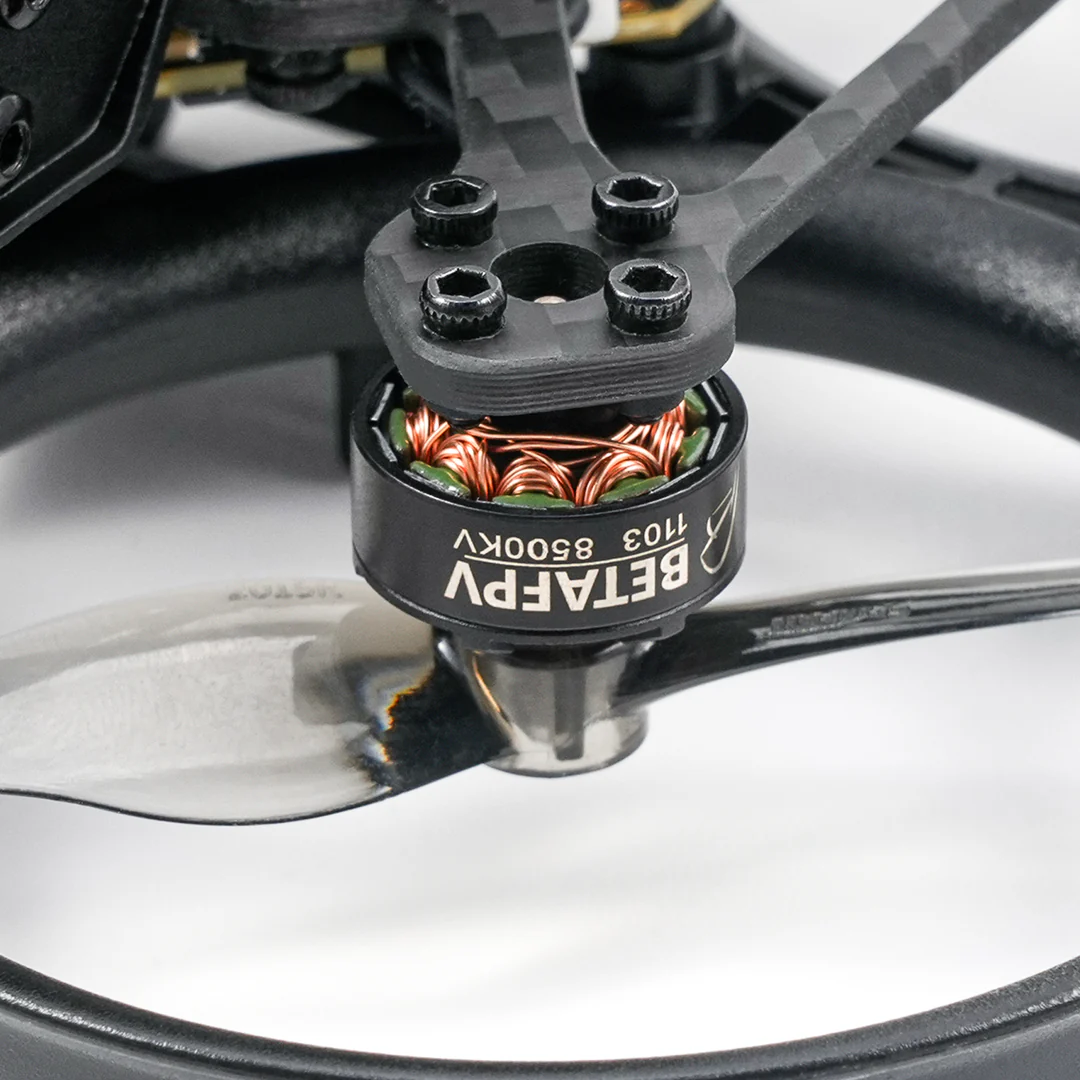

Experience the ultimate power and speed with our 1103 | 8500KV motor, it delivers unrivaled thrust for adrenaline-pumping flights. Designed specifically for 2'' props, this powerful propulsion system ensures exceptional agility and maneuverability in tight spaces. It supports 3S 450mAh~650mAh batteries, providing a perfect balance between flight time and performance. With up to 5 minutes of flight time, you can capture breathtaking aerial footage without interruption. Upgrade your drone's powerful propulsion system and elevate your flying experience to new heights.

Caution: Please correctly connect the battery's positive and negative terminals to prevent drone damage.

Kontroler lotu (Flight Controller)

Our F4 2-3S 20A AIO FC V1 features an ESC with a peak current of 25A, ensuring stable operation of the FC even in the event of motor stalling. The addition of a 9V 2A BEC power supply ensures the stable operation of the DJI O3 HD VTX when the battery voltage is low. It also includes a DJI O3 6-pin PMU allowing for connection to HD VTX without soldering. It integrates features such as a 16MB black box, with support for GPS, external receivers, and other devices. The redesigned solder pad layout and USB connector make installation and maintenance easier and more convenient.

Pasek LED COB dedykowany do serii Pavo

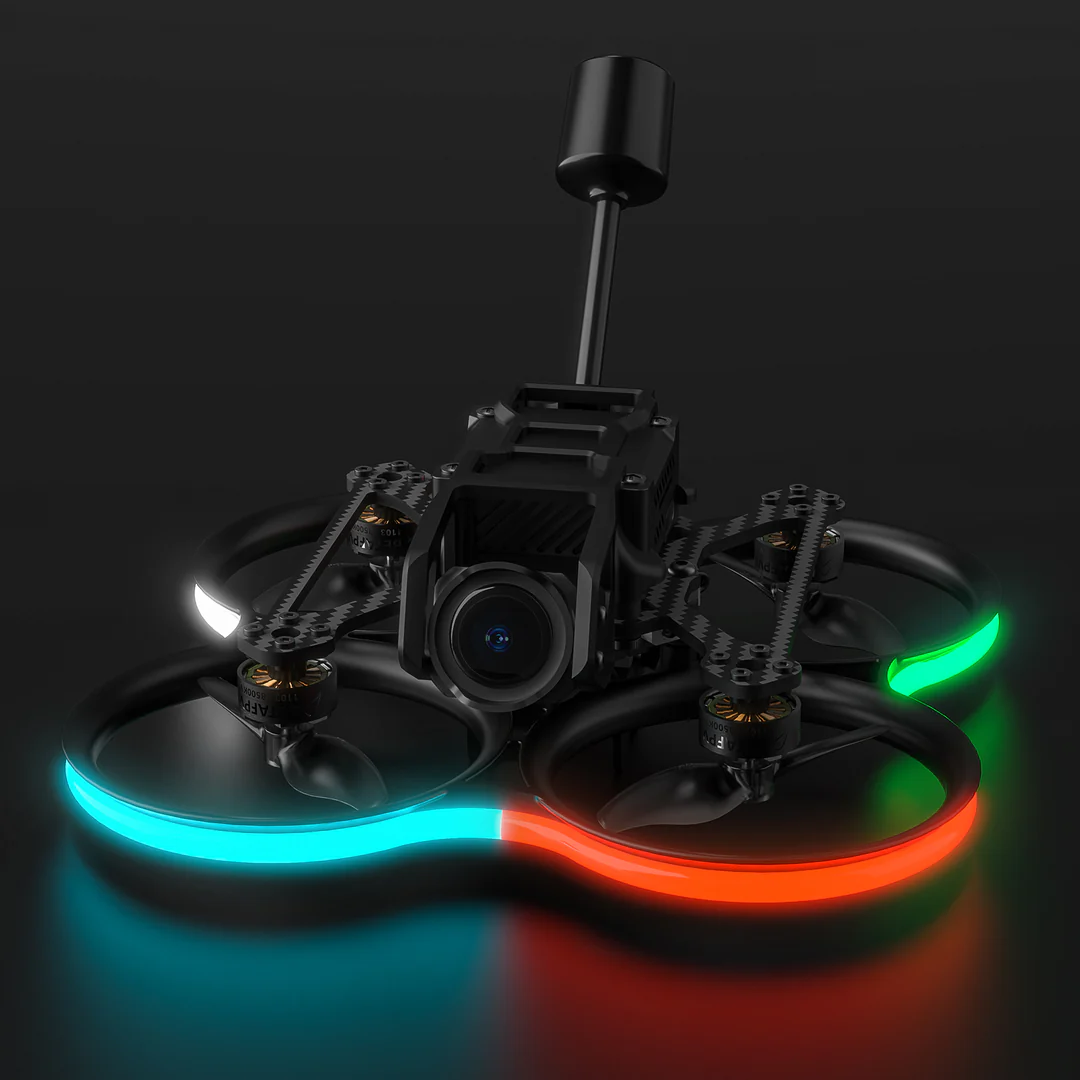

The Pavo Series COB LED Strip is a 5V-powered LED strip measuring 560 mm*4 mm. It provides increased visibility and facilitates easy observation of the drone's flight by the pilots during nighttime or poorly lit conditions, which also enhances operational safety, It can be securely mounted on the frame whoop duct, adding unique lighting effects and a visually captivating appearance. Choose from a single color option of ice blue, white, green, or red, or even mix multiple colors to personalize and elevate your flying experience while ensuring safety.

Filtr ND do kamery DJI O3

BETAFPV ND Filter for DJI O3 Camera is specifically designed for the Pavo25 V2, Pavo20 and Pavo Pico Brushless Whoop Quadcopter. Meanwhile, the DJI O3 Air Unit ND Filters are tailored for the DJI O3 Air Unit and are capable of reducing the amount of light that enters the camera lens. With this feature, you can achieve slower shutter speeds or wider apertures when flying. These lightweight filters are crafted from high-quality optical class ensuring optimal image clarity and are too easy to install on the build.

Rekomendowane części

• FC&ESC: F4 1S 12A AIO FC V3, F4 2-3S 20A AIO FC V1
• Motor: 1103 | 8000kv/8500kv/11000kv
• Propellers: GF 2015-2B, GF 2020-4B
• Battery: LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery
• VTX: DJI O3, Caddx Vista, RunCam Link
• Filter: BETAFPV ND filter

FAQ

• Click to download the FC firmware and CLI dump file(F4 2-3S 20A AIO FC V1)

W zestawie

• 1 * Pavo20 Brushless Whoop Quadcopter(Without HD VTX&Camera)
• 1 * Pavo20 HD VTX Bracket
• 1 * HD VTX Bracket Screw Package
• 1 * Pavo Series COB LED Strip Accessory Kit(Ice Blue)
• 4 * GemFan 2015 2-Blade Propeller
• 1 * Type-C Adapter Board
• 1 * 4Pin Adapter Cable
