Crux35 Analog ELRS V2 (UART)
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis

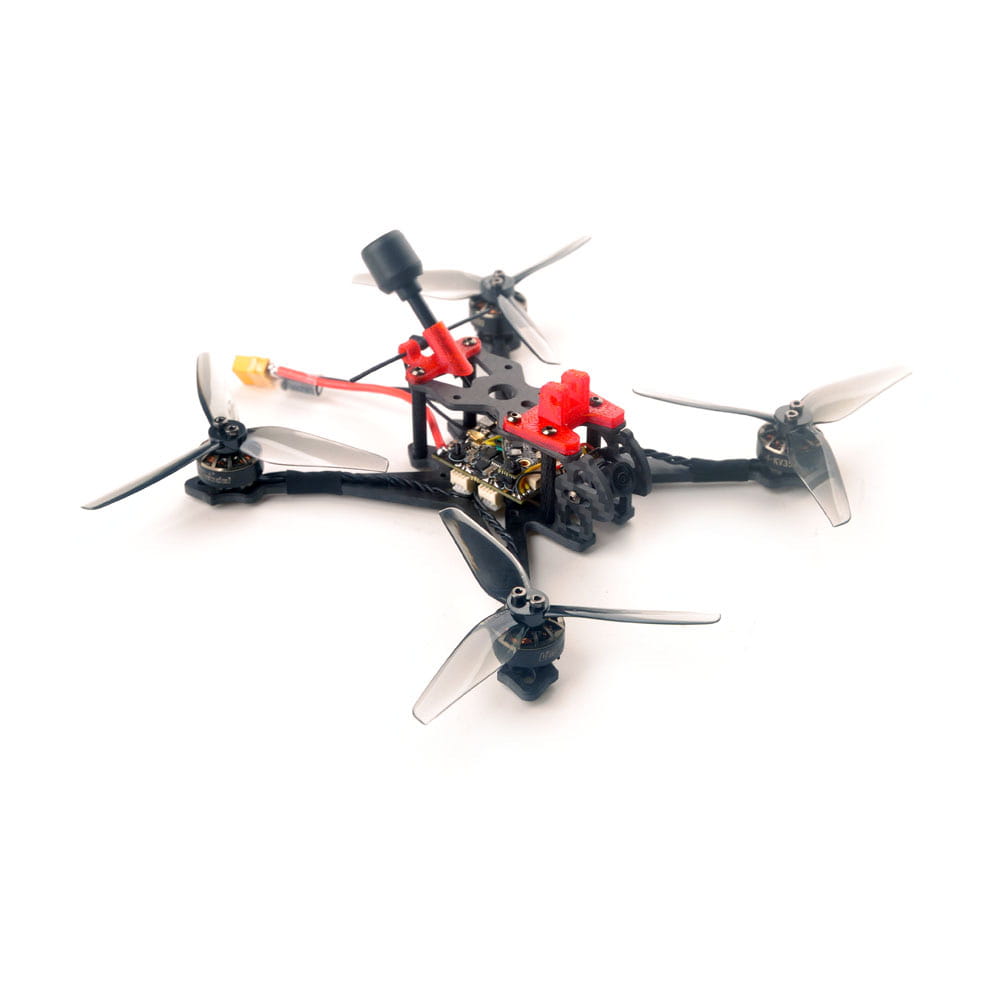

Dron FPV Crux35 Analog ELRS V2
Nowa wersja ELRS V2 z kontrolerem lotu CrazyF411 ELRS AIO z wbudowanym odbiornikiem ExpressLRS w wersji UART.
Rekomendowana bateria: LiPo 4s 750-850mAh, złącze XT30
Zawartość zestawu:
- dron Crux35 Analog ELRS V2
- 8 x śmigła HQProp T3.5X2X3 Grey (4cw+4ccw)
- pilot do kamery Caddx
- śrubokręt, śruby do śmigieł i zapasowe
- pasek do montażu baterii
- case na drona wraz z akcesoriami
Opis i specyfikacja producenta [ENG]:
CRUX35/CRUX35 HD is an ultra-lightweight 3.5Inch FPV Freestyle FPV Racing Drone, the weight of the whole drone is only 87g for the analog version and 108g for the digital HD version. The Crux35 serials drone use Happymodel EX1404 high-efficiency motor and HQPROP 3.5-inch three-blade propeller to ensure the largest thrust-to-weight ratio under the most efficient premise, which can bring you a smooth Freestyle flying experience.
The receiver version can be UART ExpressLRS and SPI Frsky (S-FHSS compatible) for choose.
ExpressLRS is the most popular RC link system by now , it could performance very well with Crux35 and Crux35 HD.
Features:
Ultra-lightweight 3.5-inch BNF FPV Freestyle Drone
HD video transmission and analog video transmission are optional
Integrated ExpressLRS UART receiver or Frsky SPI D8/D16 receiver
High efficiency EX1404 power system
Can be equipped with Naked Gopro or SMO4K
Support 3-4S battery 4S 750mah battery is recommended, maximum support 4S 1100mah
Brand: Happymodel
Product name: Crux35 HD
Wheelbase: 150mm
Weight:Crux35 87gram
Size: 130mmx130mmx45mm(without propellers)
Receiver: UART ExpressLRS 2.4GHz
Camera and VTX: Analog version Ant+OVX303 or OVX306 VTX
Flying time: 9min~15min 4s 750mah battery
| Motor | Mode: EX1404 KV options: KV3500 Configuration:9N12P Stator Diamter:14mm Stator Length:4mm Shaft Diameter: Φ1.5mm Motor Dimension(Dia.*Len):Φ15mm*15mm Weight(g):9g |
|
| Propellers | Propeller Diameter: 3.5 inch Pitch : 2 Blades : 3 Material : Poly Carbonate Weight : 1.5g Hub Diameter : 10mm Hub Thickness:4.7mm Shaft :1.9/1.5/1.9mm Adaptor Rings : NO |
|
| Flight controller
(UART ELRS Version) CrazybeeF411 ELRS |
|
|
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 2-4S LiPo/LiPo HVCurrent: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware: F-H-40 Default protocol: DSHOT300 |
|
| Onboard UART ExpressLRS 2.4GHz Receiver( UART ELRS version) | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHzAntenna plug: IPEX Telemetry output Power: <12dBm Receiver protocol: CRSF Default firmware version: ExpressLRS V3.0.1 |
| Caddx ANT 1200tvl camera
(Analog version) |
Image Sensor: 1/3″ CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE: 16:9 or 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 3D DNR Dimensions: 14*14mm(with bracket to 19*19mm) Wide Power Input: DC 3.7-18V Work Temperature: -20℃~+60℃ Weight: 2g (N.W.) |
| OVX303 5.8Ghz VTX (Analog version) |
Model: OVX303 Frequency: 5.8G 40CH Transmitting Power: 0/RCE/25mw/100mw/300mw Power supply: DC 5V Current (5v): <650ma (300mw) Weight: 1.5gram without antenna |
| OVX306 5.8Ghz VTX (Analog version) |
Model: OVX306 Frequency: 5.8G 40CH Transmitting Power: 0/RCE/25mw/100mw/300mw Power supply: DC 5V Current (5v): <650ma (300mw) Weight: 1.5gram without antenna |
