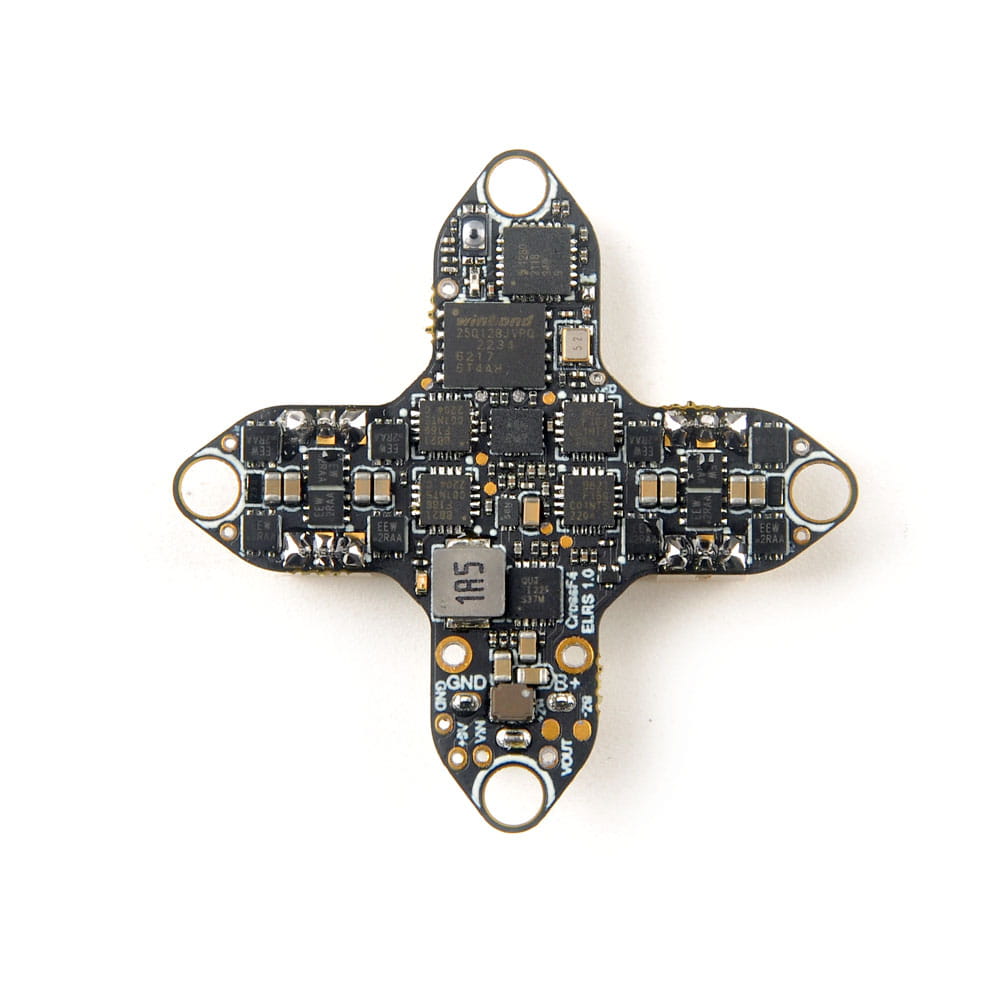

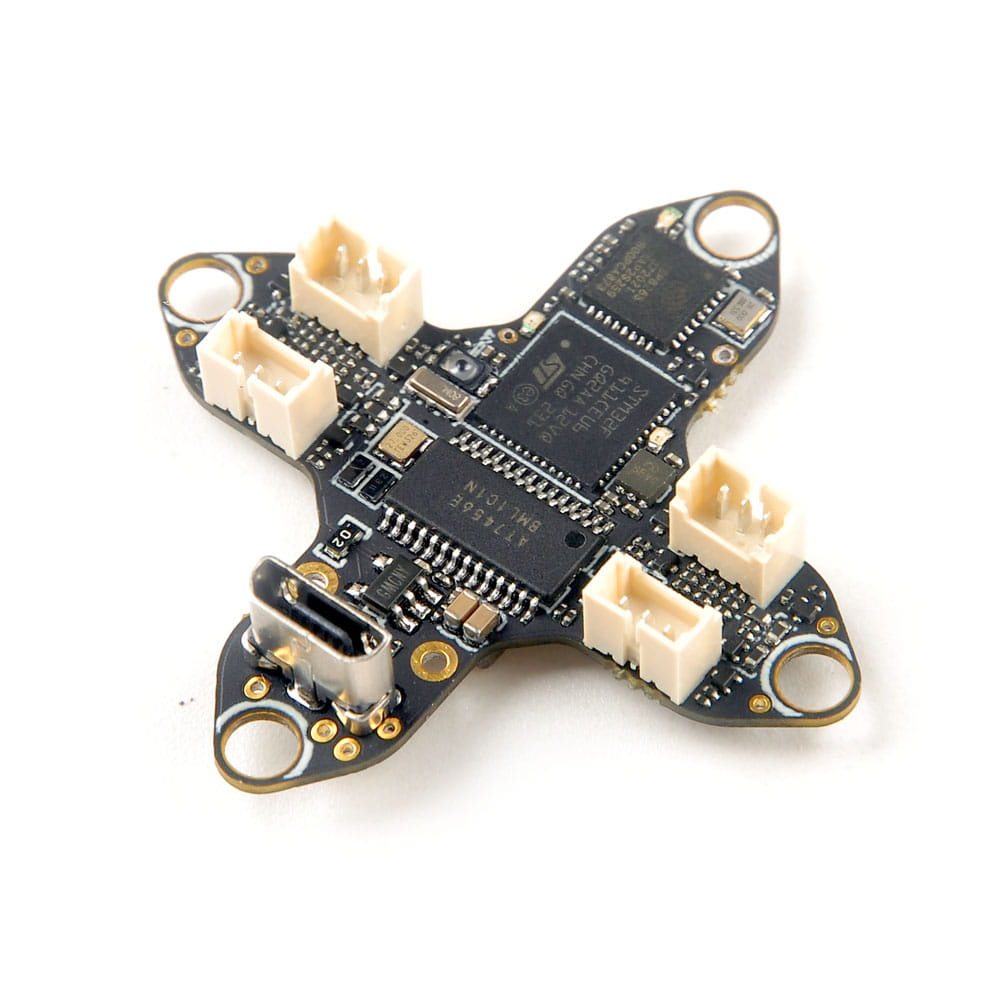

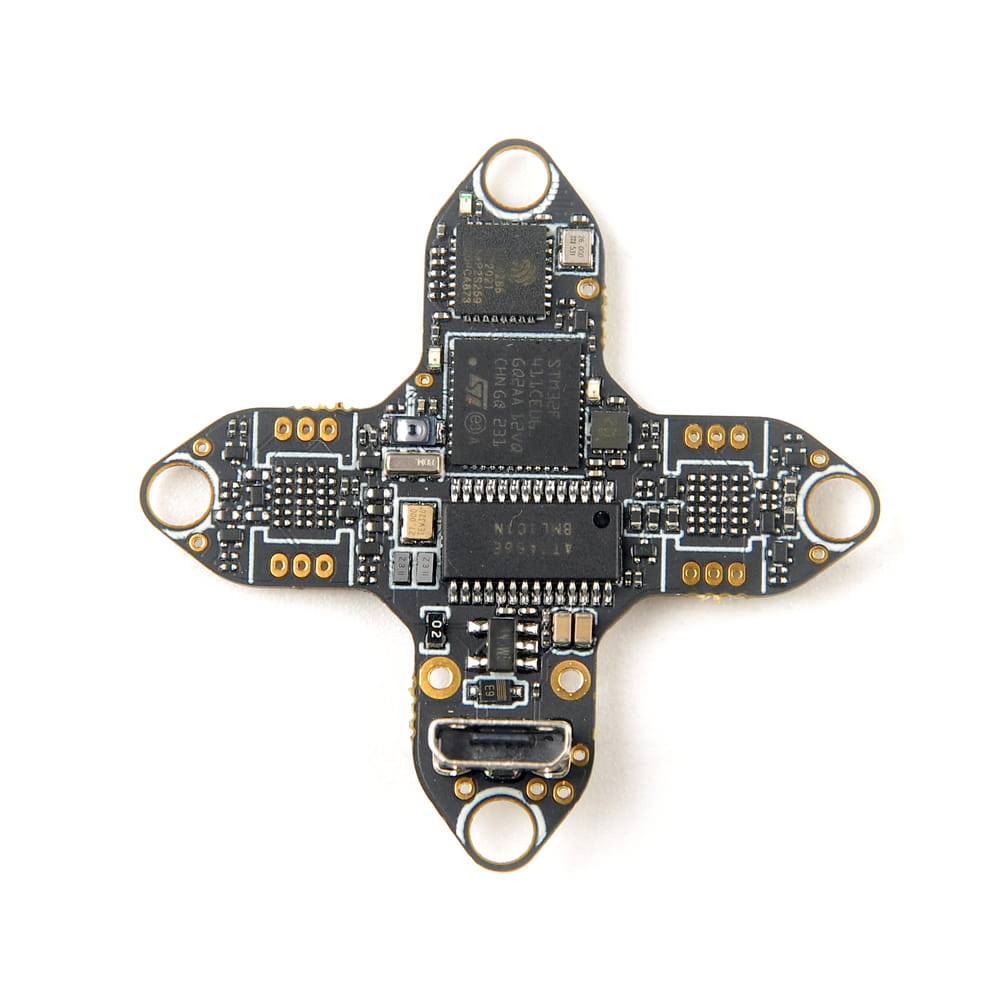

CROSSF4 ELRS Happymodel

Flight controller

Firmware target: CRAZYBEEF4DX4.3.2

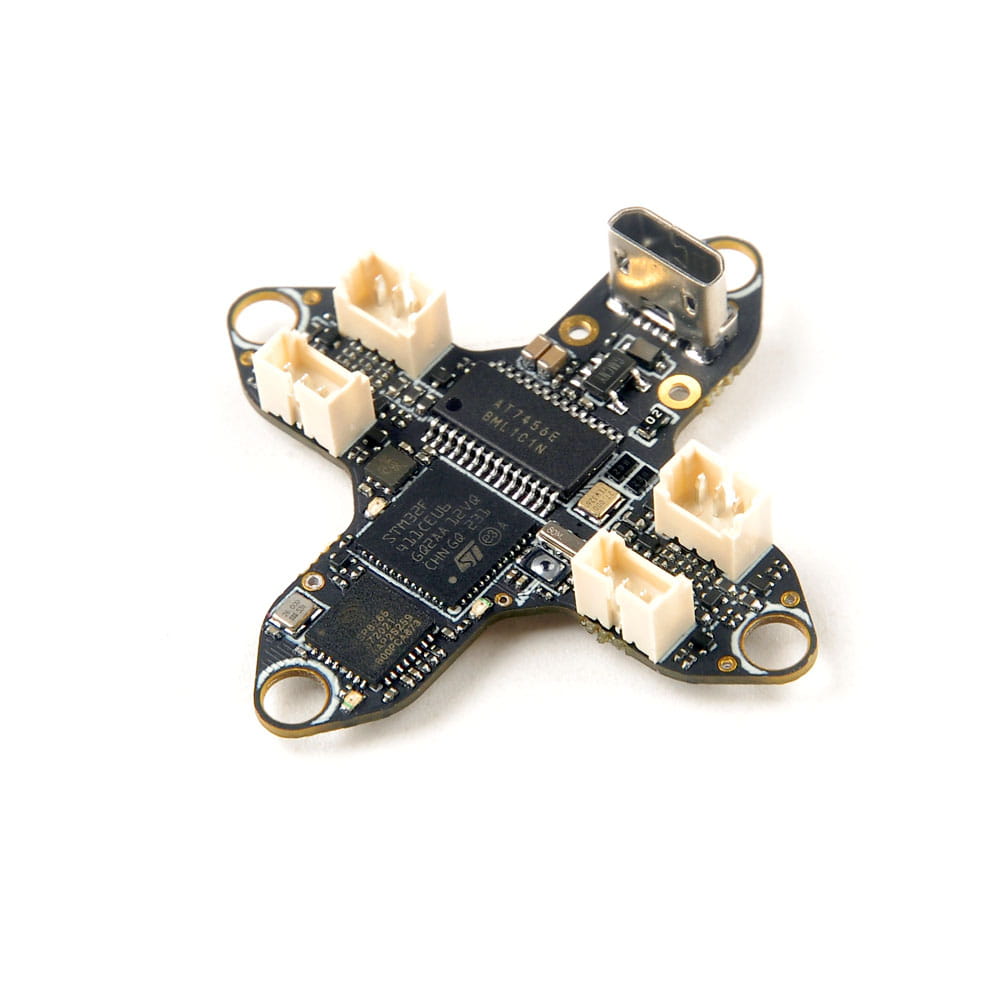

MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: BMI270(SPI connection)
Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot300 ready
Built-in Betaflight OSD(SPI Control)
Built-in UART ExpressLRS 2.4Ghz receiver(Default firmware ExpressLRS v3.0.1)
Built-in 5V 1A BEC
Built-in voltage detection and current sensor
Built-in Onboard flash 16Mb for Blackbox

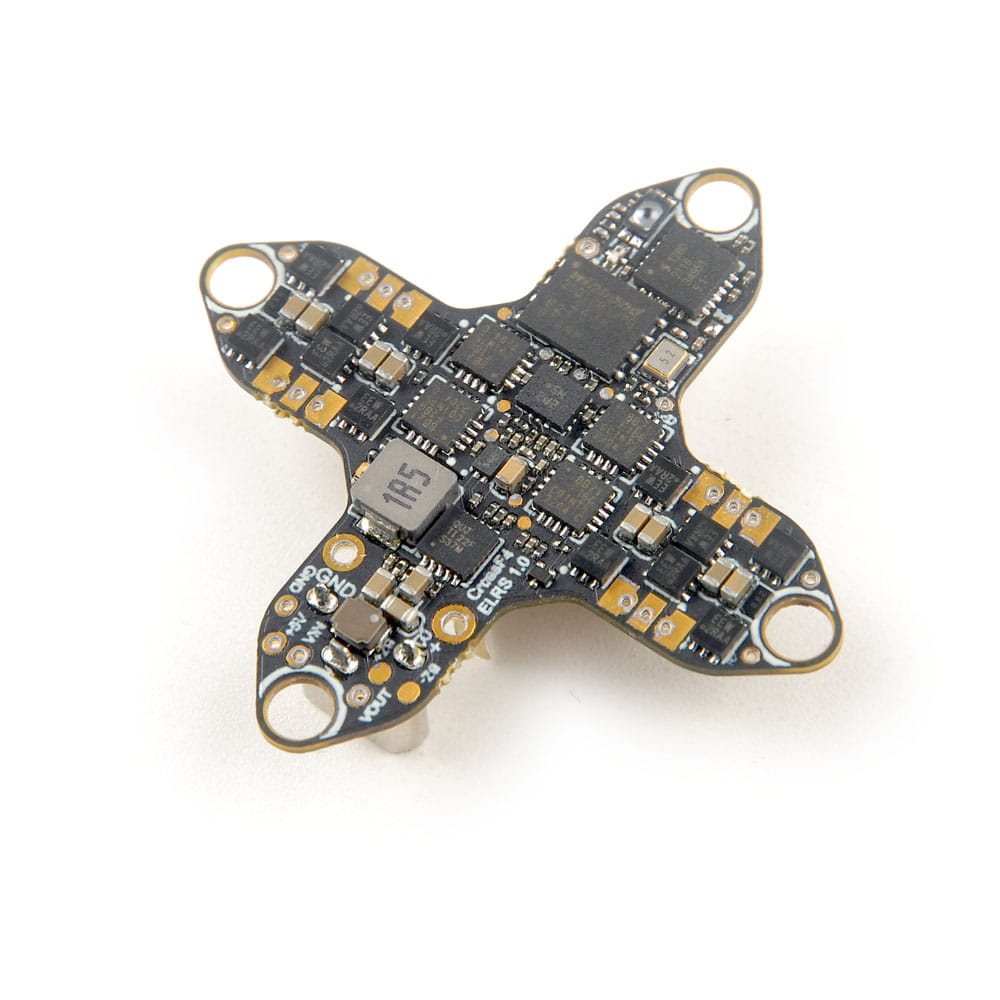

Onboard 4in1 ESC

MCU upgraded to EFM8BB21
Power supply: 1-2S LiPo/LiPo HV (2.8v~8.7v)
Currents: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Default Factory firmware: S_H_50_REV16_8.HEX
Support ESC Protocol: DSHOT150/DSHOT300/DSHOT600

Onboard UART ExpressLRS 2.4GHz Receiver

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm

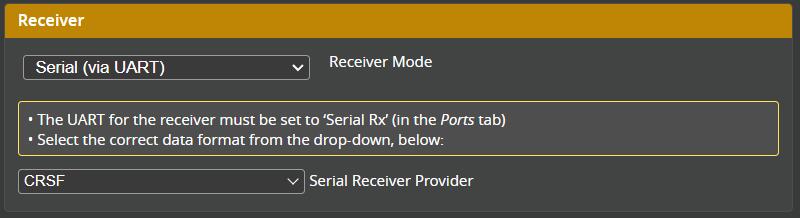

Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1
The same hardware with Happymodel EP1
Could update firmware via ExpressLRS configurator
Firmware target:HappyModel EP1/2 2400 RX

***Bind procedure is the same like Happymodel EP1/EP2 receiver , need to upgrade your ExpressLRS TX module to V3.X version first.

Onboard blackbox enable method:

Type the following command to CLI:
set blackbox_device = SPIFLASH
set flash_spi_bus = 2
resource FLASH_CS 1 a14
save

Default factory dump file for betaflight 4.3.2 :
CrossF4 ELRS diff for betaflight 4.3.2
